Convertible

51 43 150 Removing And Installing Or Replacing Trim For Left Or Right Door Pillar (Bottom)

Necessary preliminary tasks:
- Remove front entrance cover strip

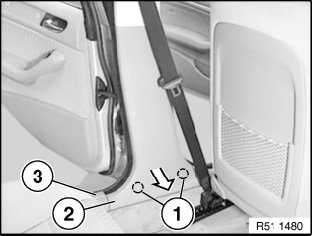

Snap trim (2) out of clips (1) at bottom.
Feed out trim (2) for door pillar from entrance cover strip (3).







Partially detach mucket in area of B-pillar panel.

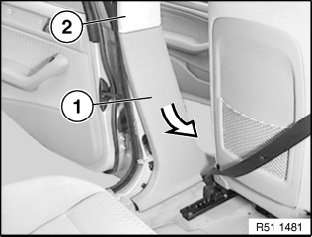

Carefully feed out bottom trim (1) from top trim (2).







Installation:

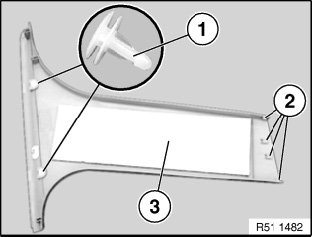

If necessary, replace faulty clips (1).
Guides (2) on trim (3) must not be damaged.
