Roof Trim Panel

51 43 201 Removing And Installing Or Replacing Trim For Front Left Or Right Roof

WARNING:
- Version with head airbag:
- Follow safety instructions for working on cars with airbag systems.

CAUTION: Do not use sharp-edged tools to remove trim (risk of damage to head airbag).







Remove mucket from front roof pillar (A-pillar finisher).

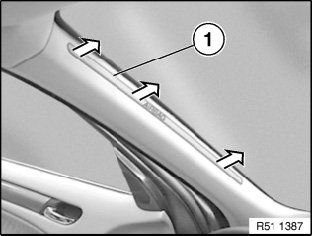

Remove plate (1).

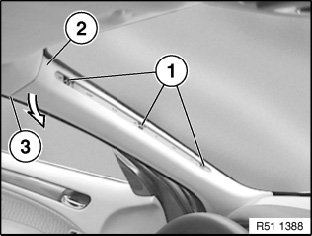

Release screws (1).
Lift out trim (2) at top (3) and remove towards inside/top.

Installation:
Install screws (1) with washers.
2AZ Trim, front roof pillar (A-pillar) on body 2.0 Nm
