Roof Trim Panel

51 43 201 Removing And Installing/replacing Panel For Front Left Or Right Roof Pillar (Convertible)







Detach mucket in area of roof pillar at front (A-pillar trim).

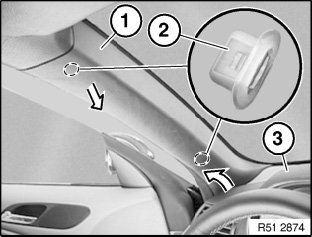

Lever panel (1) inwards out of grommets (2).
Lever panel (1) inwards/upwards out of instrument panel (3) and remove.

CAUTION: Always replace grommets (2).

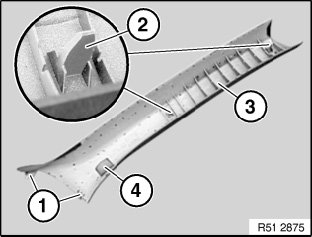

Installation:
Tabs (1 and 2) of panel (3) must not be damaged.
If necessary, fit insulating strip (4).

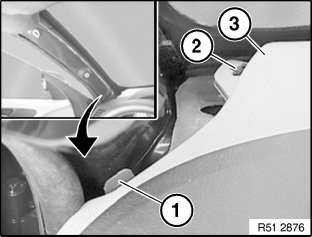

Installation:
Mountings (1 and 2) of instrument panel (3) must not be damaged.
