Sun Visor: Service and Repair

51 16 080 Removing And Installing Or Replacing Sun Visor And Left Or Right Counter Support







Lift out sun visor (1).
Version without interior light package:
Unfasten screws (2) and remove sun visor (1).

Version with interior light package:
Release screws (2) if necessary, pull out lighting cable a little, disconnect plug connection and remove sun visor (1).

Installation:
Perform function check on lighting.

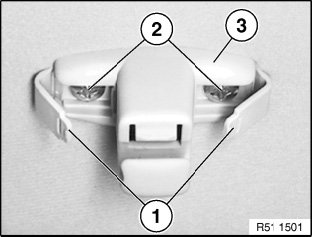

Lift out inserts (1).
Release screws (2) and remove counter support (3).
