54 21 100 Removing And Installing/Replacing Molded Roof Lining On Hard Top

54 21 100 Removing And Installing/Replacing Molded Roof Lining On Hard Top

If necessary, remove hard top.
Remove molded roof lining trim (panel, C-pillar).

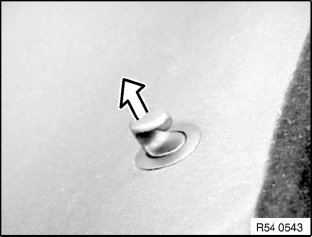

Open clothes hook and pull out with a forceful tug.

Installation:
Check clothes hooks for damage (clip lugs) and replace if necessary.

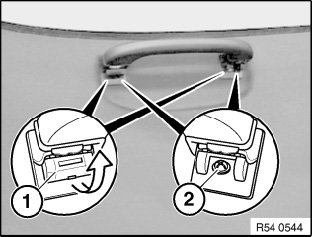

Fold cover (1) open.
Release screws (2) and remove handle.

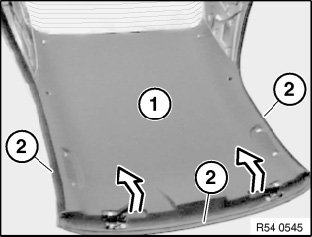

Feed molded roof lining (1) out of roof frame (2) all round.
Raise roof lining at front a little, slide towards rear and remove.
