51 16 361 Replacing Right Glovebox (Convertible)

51 16 361 Replacing Right Glovebox (Convertible)

Remove right glovebox.
Remove lock for right glovebox.

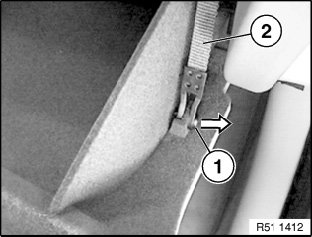

Release pin (1) from retaining strap (2).

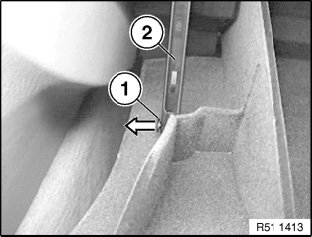

Release pin (1) from shock absorber (2).

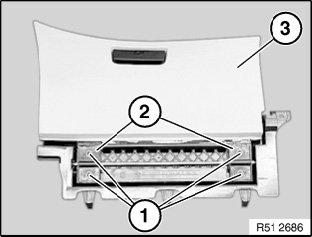

Release screws (1).
Remove holder (2) from glovebox (3).

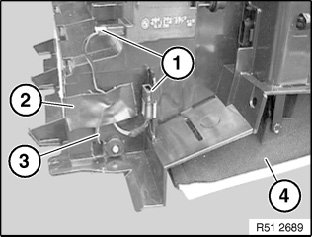

Disconnect plug connections (1).
Detach adhesive tape (2).
Feed out cable (3) with glovebox (4).
