Sedan

51 16 360 Removing And Installing Right Glove Box

Open glovebox.

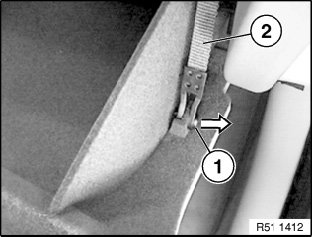

Detach pin (1) from retaining strap (2).







Detach pin (1) from shock absorber (2).

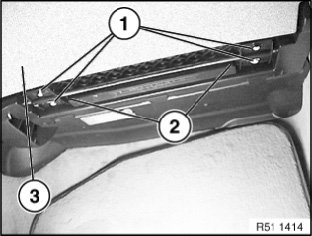

Unscrew bolts (1).
Remove bracket (2) and glove box (3).
