Removing and Installing Switch Unit In Center Console

Removing And Installing Switch Unit In Center Console

Version with SMG transmission only:
Remove trim for storage tray.

Version with automatic transmission only:
Remove finisher for preselector lever.

All:
Remove trim for center console.
Remove insert in function carrier.
In version with on-board monitor, remove heater controls.

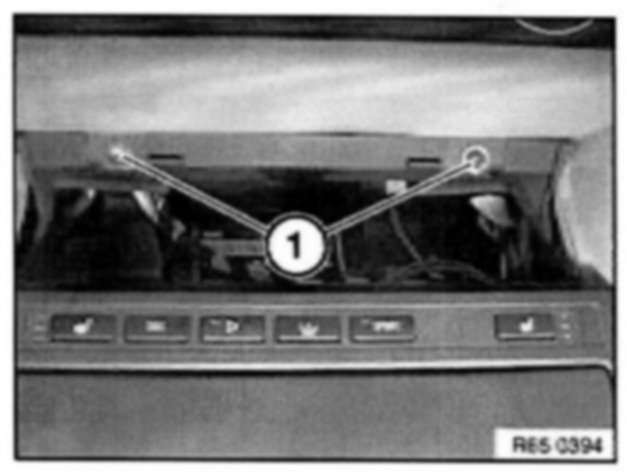

Loosen screws (1).

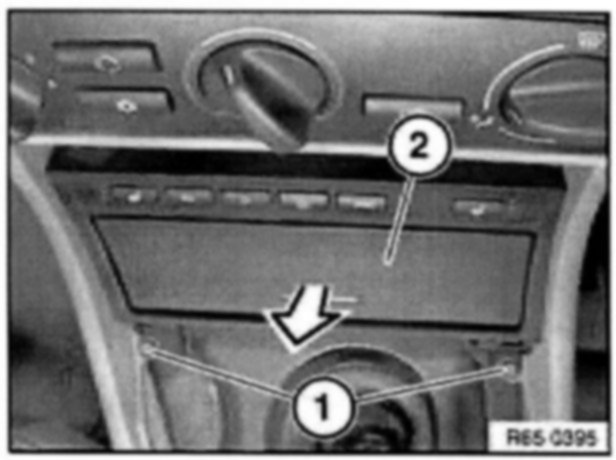

Loosen screws (1).
Pull out function carrier for switch center (2) in direction of arrow.

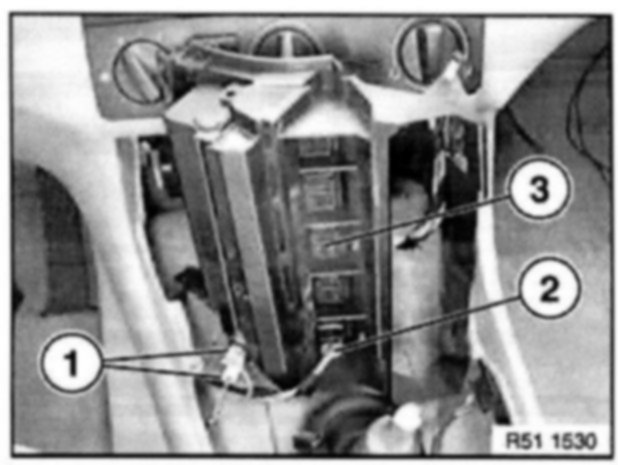

Disconnect plug connections (1) and (2) and remove function carrier for switch center (3).
