51 16 202 Removing and Installing/Replacing Front Cup Holder

51 16 202 Removing And Installing/replacing Front Cup Holder







Removal:

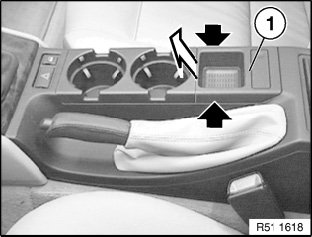

Press sides of oddments tray (1) together and lift out.

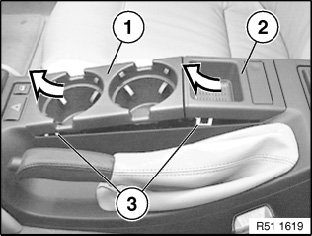

Cup holder (1) and oddments tray (2) are now unlocked from catches (3).
Remove cup holder (1) towards front/top and then remove oddments tray (2).







Installation:

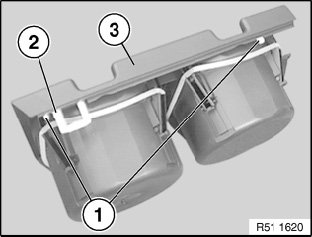

Guides (1) and supports (2) on left/right on cup holder (3) must not be damaged.







Installation:

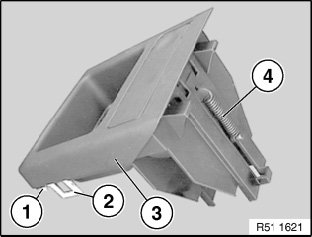

Guides (1) and supports (2) on left/right on oddments tray (3) must not be damaged.
If necessary, replace fault tension spring (4).







Installation:

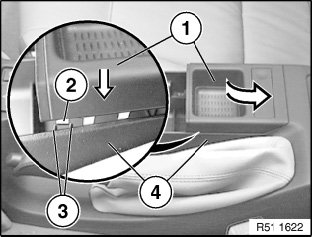

Insert oddments tray (1) at rear into center console.
Guide (2) must be positioned between supports (3) of centre console (4), oddments tray (1) can now be snapped down into place.

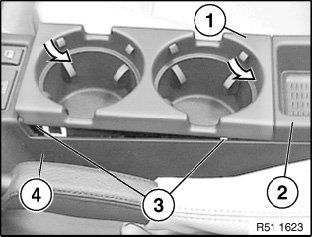

Insert cup holder (1) into oddments tray (2).
Guides (3) must be positioned between supports of centre console (4), cup holder (1) can now be snapped down into place.
