31 11 506 Lowering/ Raising Front Axle Carrier
31 11 506 Lowering/ Raising Front Axle CarrierNecessary Preliminary Tasks:
- Secure engine in installation position
- Remove underbody protective plate
- Remove reinforcement plate
- Remove lower steering spindle from power steering gear
- If necessary, disconnect plug connection from ride-height sensore
- Remove both brackets for control arm from engine carrier
After Installation:
- Carry out steering angle sensor adjustment
Important!
Pay attention to power steering hoses and lines when lowering and raising. Hoses/ lines must not be kinked/ tensioned/ bent!

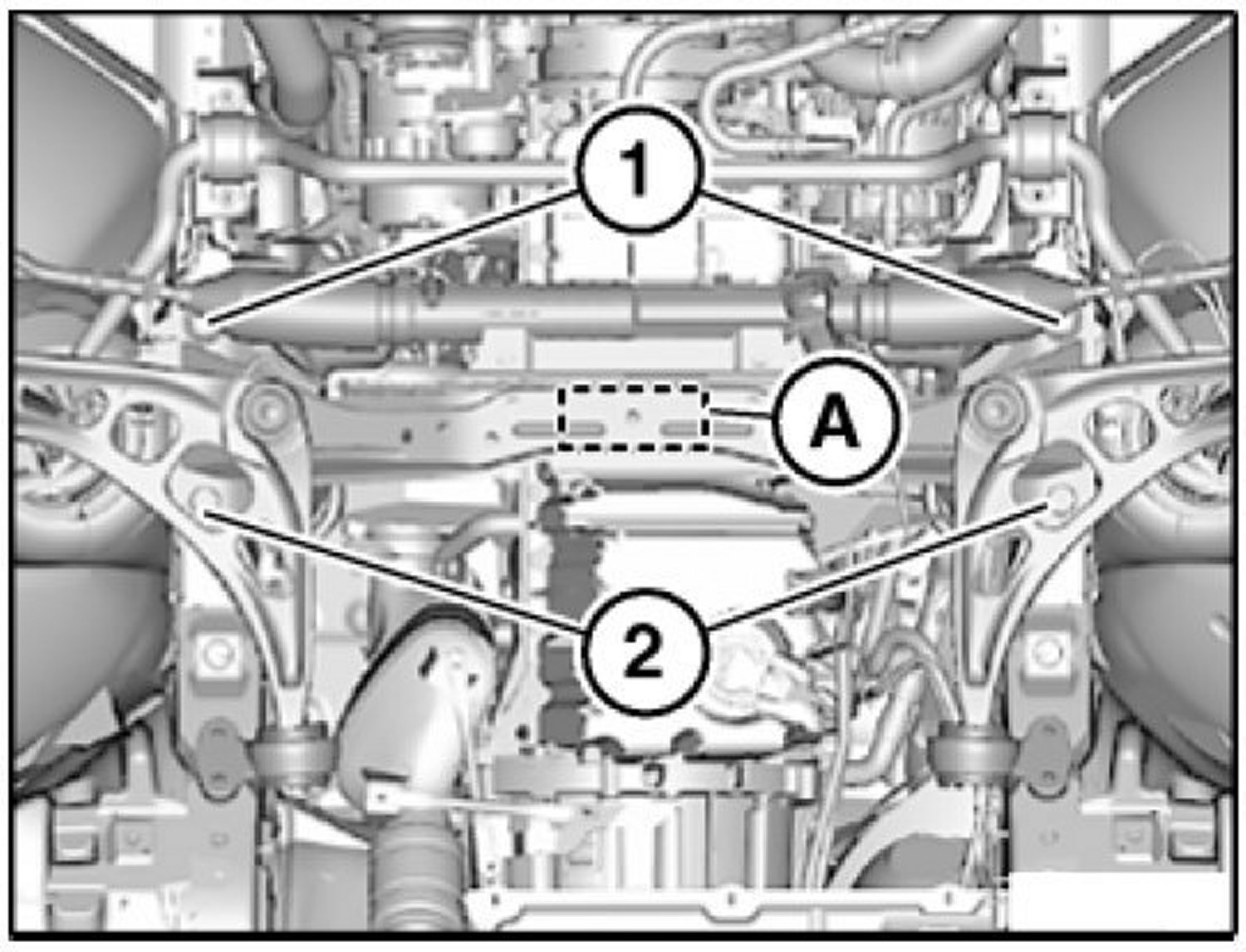

Support front axle carrier in area (A) with workshop jack.
Release screws (1, 2).
Lower front axle carrier.
Installation:
Check threads for damage; if necessary, repair with Helicoil thread inserts.
Tighten down first screws (2) and then screws (1).
Torque Specs:
