Convertible

51 71 041 Removing And Installing/replacing Rear Left Or Right Wheel Arch Cover

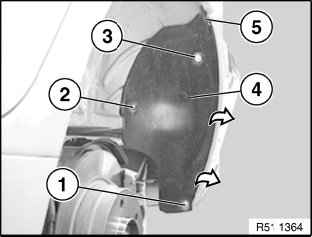

NOTE: Shown here without rear wheel to illustrate details better.







Release expansion rivet (1), plastic nut (2), and screw (3).

NOTE:
- Version with tire-pressure checking system:
- Disconnect plug connection after levering out wheel arch cover (4).

Lever out wheel arch cover (4) and remove.

Installation:
Insert wheel arch cover (4) at top into bumper (5).







Installation:

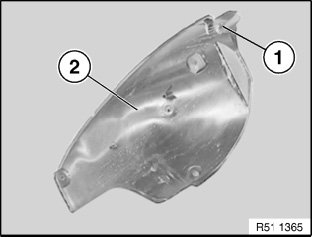

Guide (1) of wheel arch cover (2) must not be damaged.







Replacement with tire-pressure checking system only:

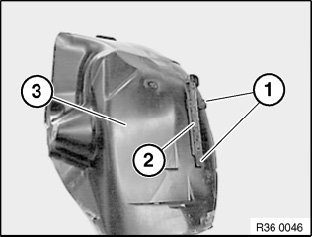

Release screws (1) and remove receiving antenna (2) from wheel arch cover (3).
