Installing/Replacing License Plate (Without Base)

51 11 ... Installing/replacing License Plate (Without Base)







Initial fitting:

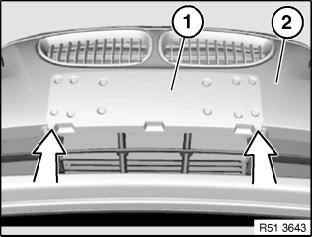

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to license plate.
Remove template (1).
Secure license plate with screws provided.
7AZ License plate to bumper 1 Nm
Fit protective caps.







Repairing thread:

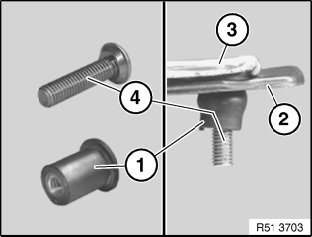

Drill out defective hole in bumper (2) to 9.5 mm diameter.
Insert blind rivet nut (1)*.
Secure license plate (3) with license plate screw (4)*.
8AZ License plate to bumper (thread repair)
M5 4.5 Nm

NOTE: *Sourcing reference: BMW Parts Service
