Trunk / Liftgate Latch: Service and Repair

51 24 100 Removing And Installing/Replacing Rear Lid Lock (Upper Section)

Remove panel for rear lid.







Convertible only:
Remove additional brake light.

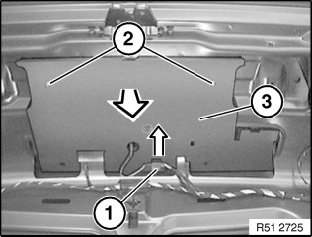

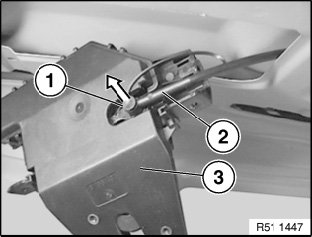

Unclip plug connection (1) in direction of arrow from cover fastener and disconnect.
Loosen screws (2).
Unclip cover fastener (3) in direction of arrow.







Installation:

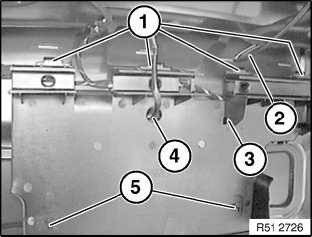

Ensure retaining lugs (1) are correctly seated.
Place Bowden cable (2) in mount (3).
Feed plug (4) as illustrated through opening.
Ensure catches (5) are correctly seated.

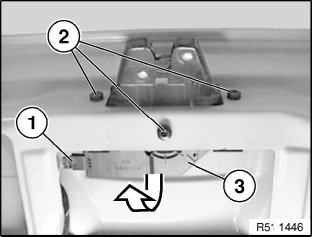

Unfasten plug connection (1).
Release screws (2) and feed out upper section of rear lid lock (3).

Installation:
Use thread-tapping screws.







Remove lock(1).
Lever out actuating rod (2) and remove upper section of rear lid lock (3).

Installation:
Perform function check with trunk lid open.
