51 47 151 Removing and Installing/Replacing Trunk Wheel Housing Trim, Left

51 47 151 Removing And Installing/Replacing Trunk Wheel Housing Trim, Left

Remove socket housing for tail light in side section.
Version with through-load system:
Remove rest side section from rear seat backrest.

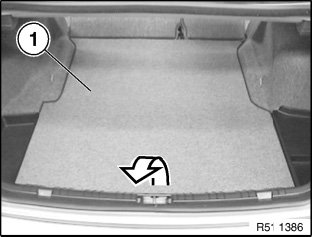

Take out luggage compartment floor trim panel (1).
Remove cover for spare wheel/jack.







Remove warning triangle.

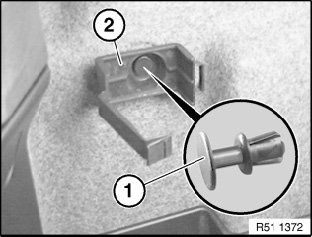

Release expansion rivet (1) and remove fixture (2) for warning triangle.







Version with through-load system:

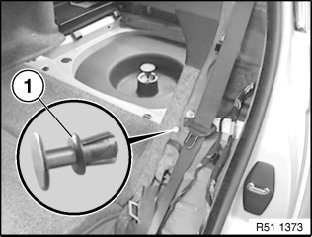

Release expansion rivet (1).







Partially release panel for trunk separating wall.
Release expansion rivet (1) and remove trunk arch housing trim (2).
