51 47 161 Removing and Installing/Replacing Right Trunk Wheel Arch Trim

51 47 161 Removing And Installing/Replacing Right Trunk Wheel Arch Trim

Remove socket housing for tail light in side section.
Version with through-load system:
Remove rest side section from rear seat backrest.

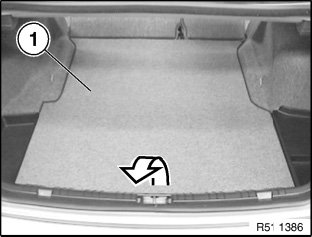

Take out luggage compartment floor trim panel (1).
Remove cover for spare wheel/jack.







Pull out emergency release mechanism for tank cap a little.

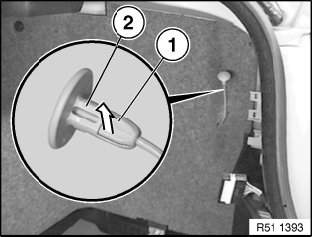

Unclip cable (1) from clip (2).

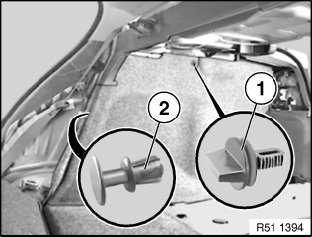

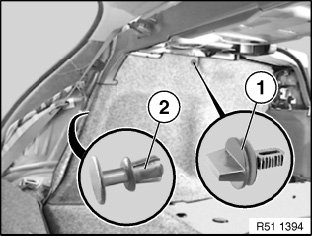

Turn rotary clip (1) through 90 ° and remove.







Partially release panel for trunk separating wall.

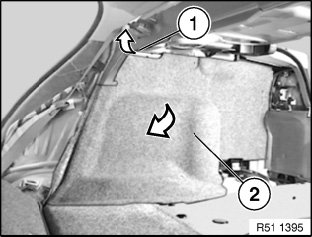

Partially lever out outer trim (1) and remove trunk wheel arch trim (2).
