Removing and Installing/Replacing Panel For Luggage Compartment Separating Wall (Convertible)

51 47 140 Removing And Installing/replacing Panel For Luggage Compartment Separating Wall (Convertible)

Version with ski bag:
If necessary, remove both trunk wheel arch trims.

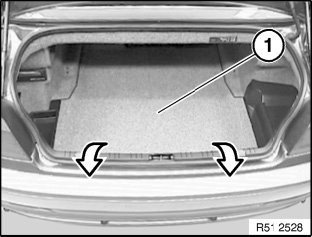

Take out luggage compartment floor trim panel (1).







Remove panel (1) for trunk separating wall.

Installation:

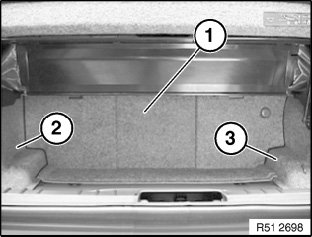

Panel (1) for luggage compartment separating wall must be seated at sides correctly in trunk wheel arch trims (2 ... 3).
