Removing and Installing/Replacing Left Trunk Wheel Arch Trim (Convertible)

51 47 151 Removing And Installing/replacing Left Trunk Wheel Arch Trim (Convertible)

Remove socket housing for rear light.
If necessary, remove navigation computer with CD drive.

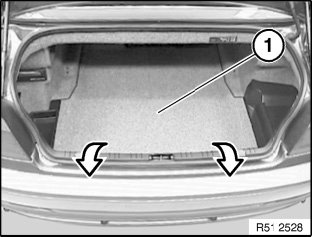

Take out luggage compartment floor trim panel (1).

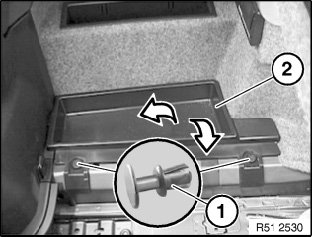

Release expansion rivets (1).
Remove left storage tray (2).







Installation:

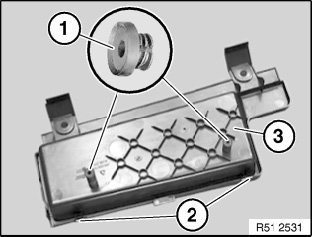

If necessary, replace faulty rubber mount (1).
Guides (2) of tray (3) must not be damaged.

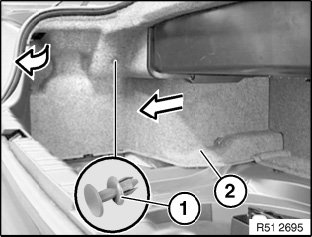

Release expansion rivet (1).
Lift trunk wheel arch trim (2) out of convertible top compartment and remove.
