Fuel Door Release Actuator: Service and Repair

51 17 400 Removing And Installing/Replacing Bump Stop With Ejector For Filler Flap

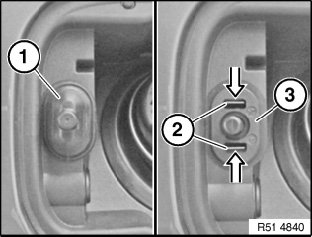

Release cover (1).
Press catches (2) together and pull out ejector (3).

Installation:
Install ejector (3) with fitted cover (1).

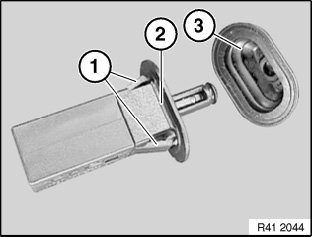

Installation:
Catches (1) on ejector (2) must not be damaged.
Make sure cover (3) is correctly seated on ejector (2).
