Home >> BMW >> 2005 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Bracket >> Service and Repair >> Sedan - Replacing Holder For Bumper At Rear Left or Right (From 09.01)

Sedan - Replacing Holder For Bumper At Rear Left or Right (From 09.01)



51 12 801 Replacing Holder For Bumper At Rear Left Or Right (From 09.01)

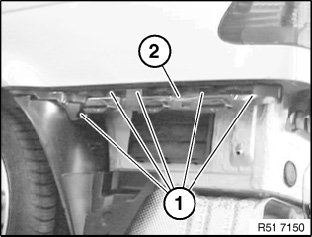

Loosen screws (1).
Remove bracket (2).
