Replacing Trim Panel For on-Board Monitor (Control Panel)

Replacing Trim Panel For On-Board Monitor (Control Panel)

Remove and install complete on-board monitor.

CAUTION: Place trim panel on special tool 12 7 192 (anti-static mat) and ground.

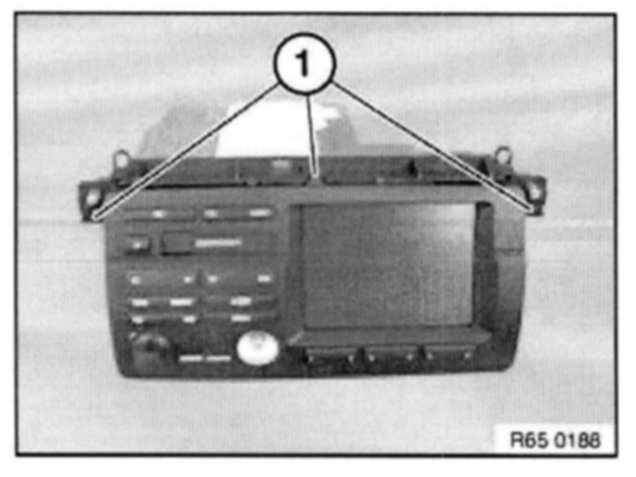

Release screws (1) and tilt trim panel out from above.

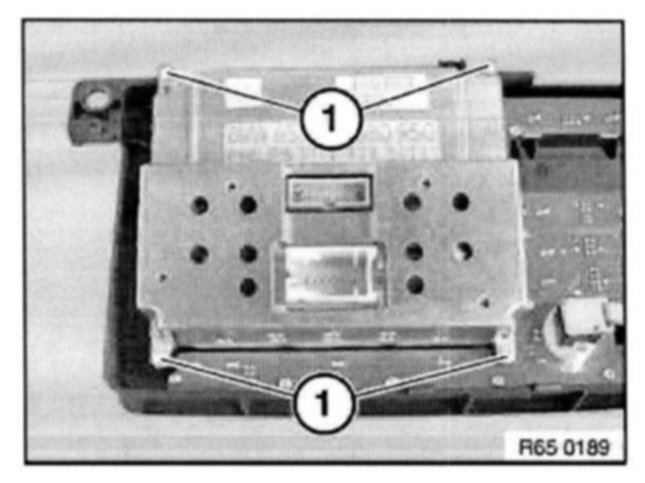

Release screws (1) and remove LC display.







Installation:

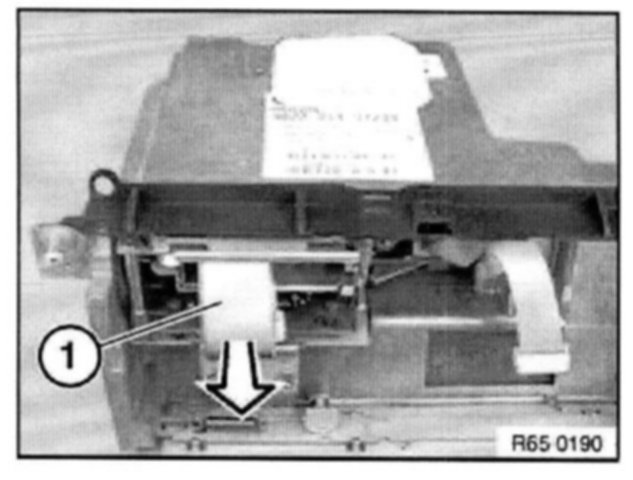

Lay wire (1) downwards.
