Creating Opening For Hifi Speaker (or Window Crank)

Creating Opening For HiFi Speaker (Or Window Crank)


NOTE: Door or side trim panel removed.

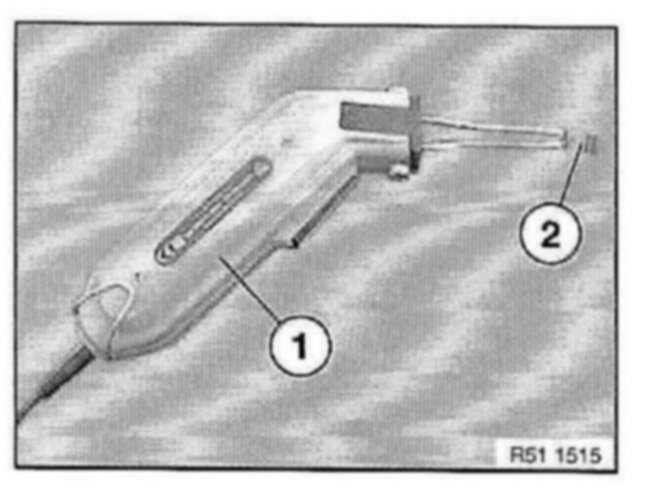

NOTE: The aperture is created with a commercially available hot cutter (1) with replaceable blades (2).


WARNING:
Be careful not to burn yourself when using hot-cutting equipment.
Do not inhale fumes.
When working indoors:
Ensure room is well ventilated.
Remove the fumes generated during cutting with a fume extraction facility.

General information:
Further safety precautions, refer to operating instructions for hot-cutting equipment.

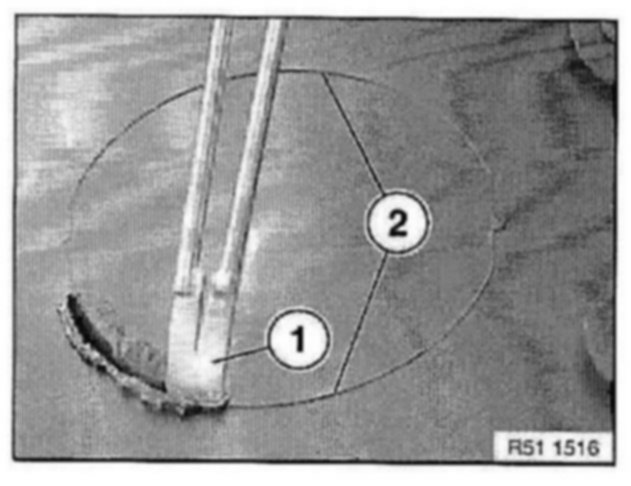

Position blade (1) of hot cutter inside marking (2), push through and cut out along marking (2).

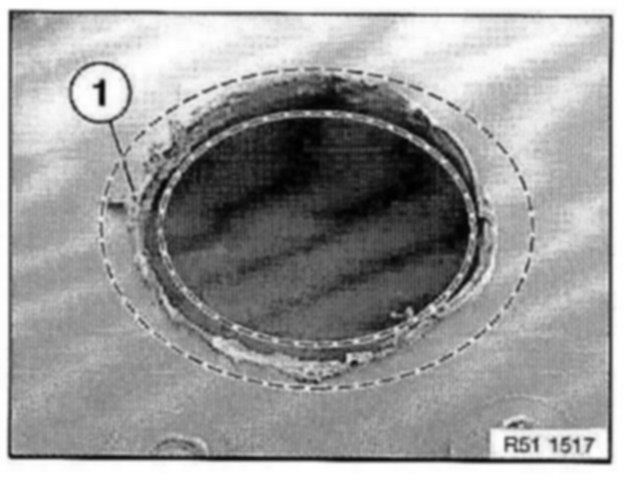

Remove remaining area (1) on door trim panel (2) with a scalpel until flush.
