65 11 030 Removing and Installing / Replacing Radio Receiver (Built-In Unit)



65 11 030 Removing and Installing / Replacing Radio Receiver (Built-In Unit)

Remove decorative strip above radio. 51 16 221 Replacing A Clipped-In Trim (Decorative Strip on Panel For Instrument Panel, Front or Rear Door)

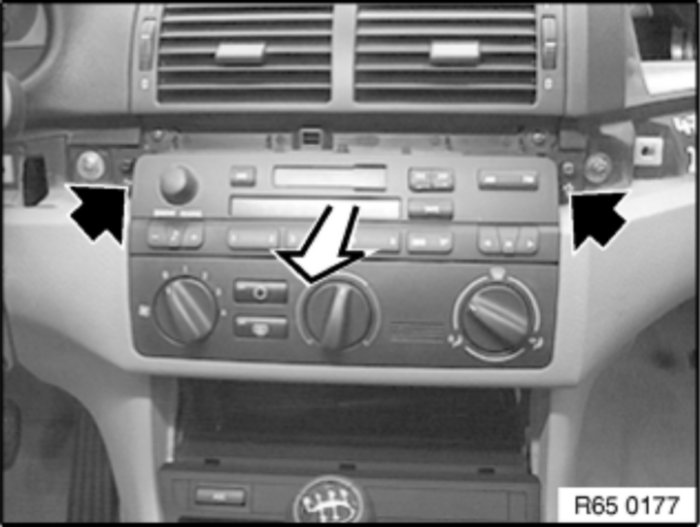

Release screws and pull out radio.





Unfasten plug connection.
