CD Changer: Service and Repair

Removing And Installing/Replacing CD-Changer

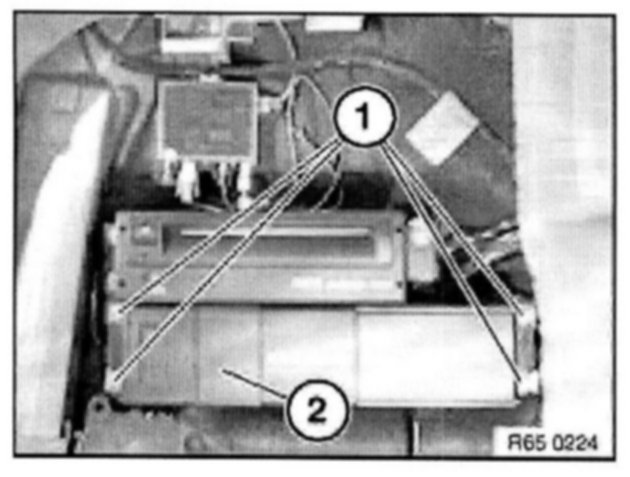

Touring:
Remove flap in luggage compartment trim panel on left.
Loosen screws (1).
Withdraw CD changer (2) and disconnect plug connections.

Replacement:
Remove CD changer holder.

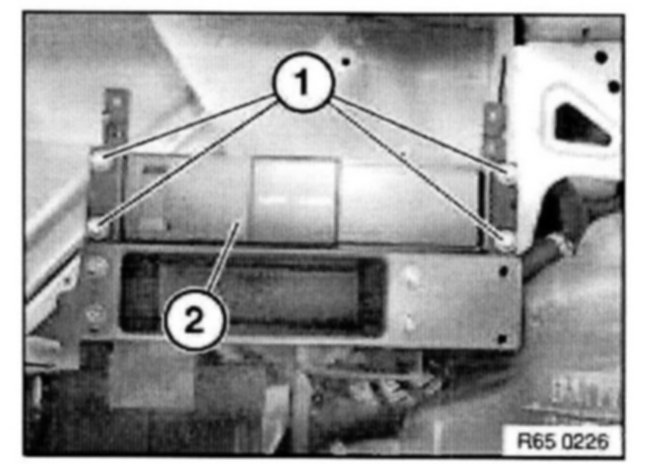

Saloon/Sedan and Coupe:
Remove luggage compartment wheel arch trim on left.
Loosen screws (1).
Withdraw CD changer (2) and disconnect plug connections.

Replacement:
Remove CD changer holder.







Convertible:
Remove luggage compartment wheel arch trim on left.
Remove holder for radio receiver.
Loosen screws (1).
Withdraw CD changer (2) and disconnect plug connections.

Replacement:
Remove CD changer holder.
