RGB Signals (Without VID Video Module)

RGB Signals

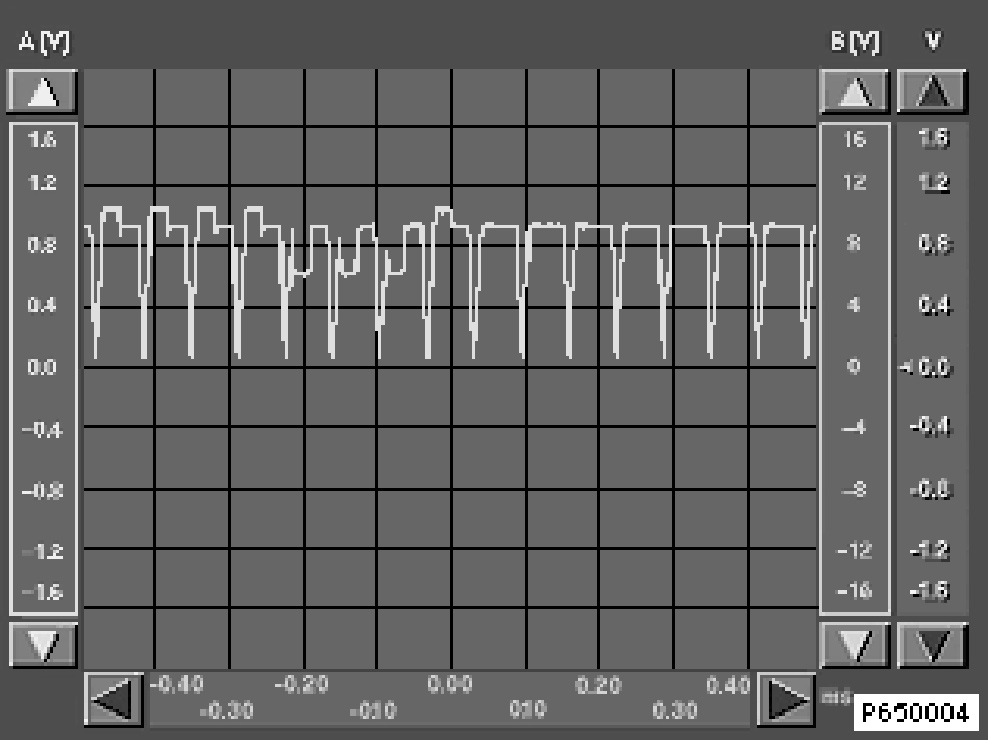

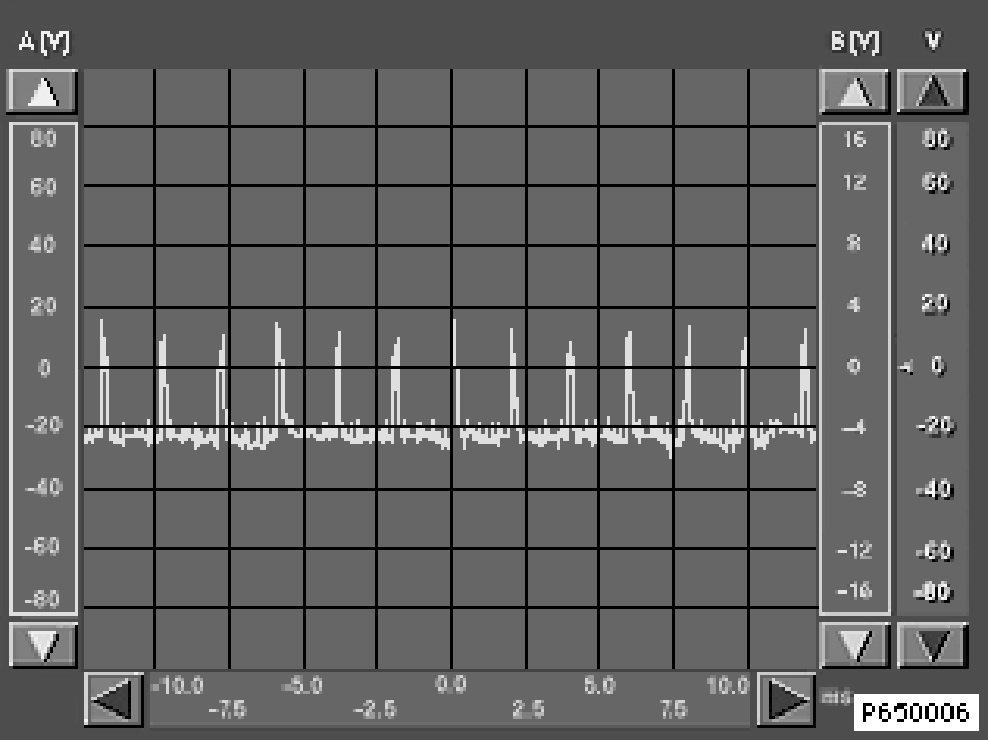

All oscilloscope images are reference values and may deviate depending on the image content!

Image signals R G B (red, green, blue)

Ground LC display < Evaluate voltage range only ! >

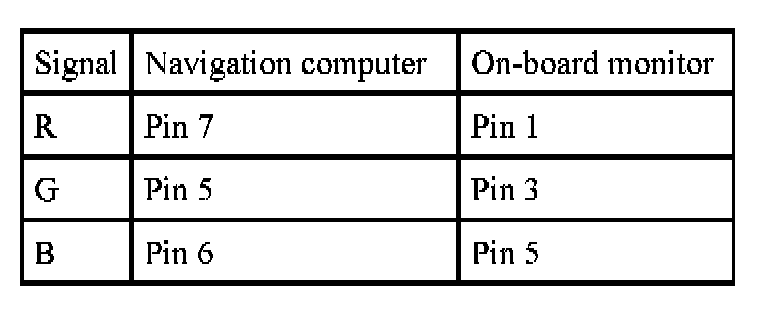

Navigation computer On-board monitor
Pin 12 Pin 7
