Alarm System Transponder: Service and Repair

Removing And Installing/Replacing Ring Antenna Of Electronic Immobilizer

Remove steering column upper and lower sections.

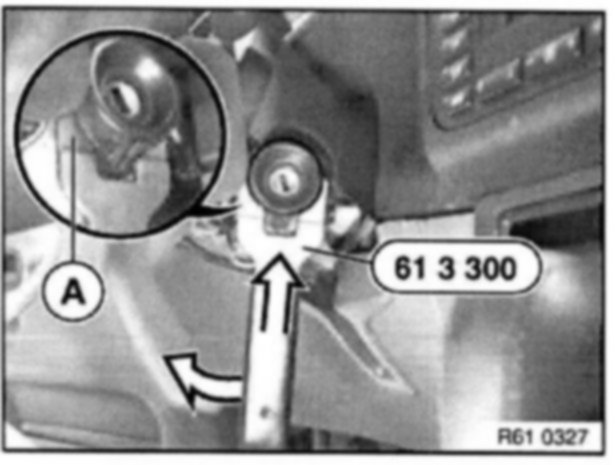

Slide in special tool 61 3 300 with flattened end (A) facing ring antenna and lever out ring antenna.
