Replacing Antenna Amplifier (Convertible Top Compartment Lid)

Removing And Installing/Replacing Antenna Amplifier (Convertible-Convertible Top Compartment Lid)







Open convertible top compartment lid.

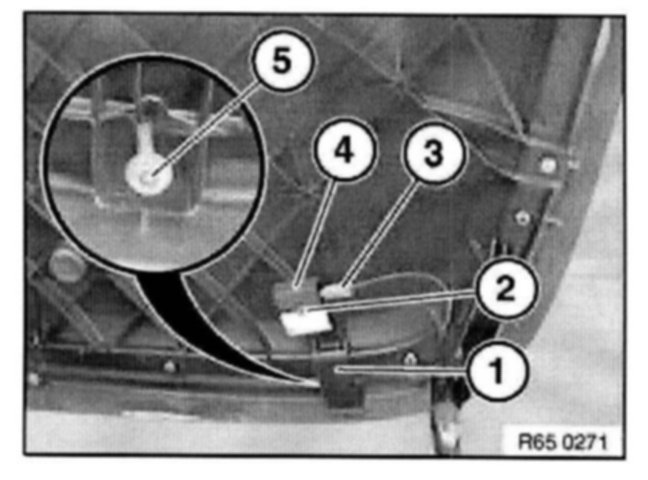

Disconnect plug connection (3).
Remove protective cap (1) and release screw fitting (5) underneath.
Release screw (2) and remove antenna amplifier (4).
