Replacing Antenna Amplifier

Removing And Installing/Replacing Antenna Amplifier (Convertible)

Remove luggage compartment wheel arch trim on left.

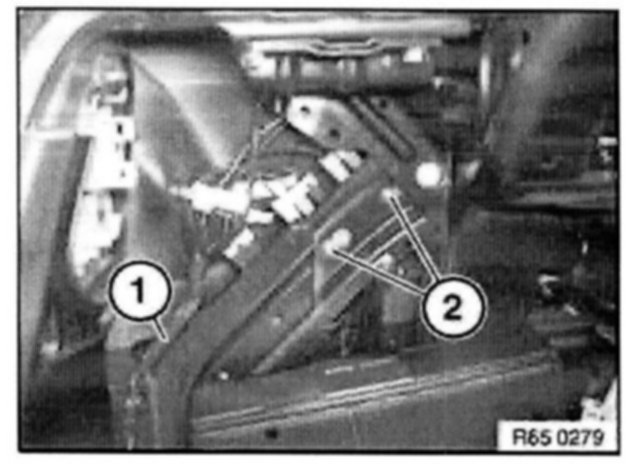

Unclip wiring harness fixture (1).
Release screws (2) and remove antenna amplifier.
Unfasten plug connection.
