Procedures

Removing And Installing Console For Windshield Wiper System Completely With Motor

Necessary preliminary tasks:
- Remove cowl panel cover.
- Remove tension strut on spring strut dome.
- Remove fresh air duct.

IMPORTANT: Before fitting windshield wiper arms, allow wiper motor to run into rest position.

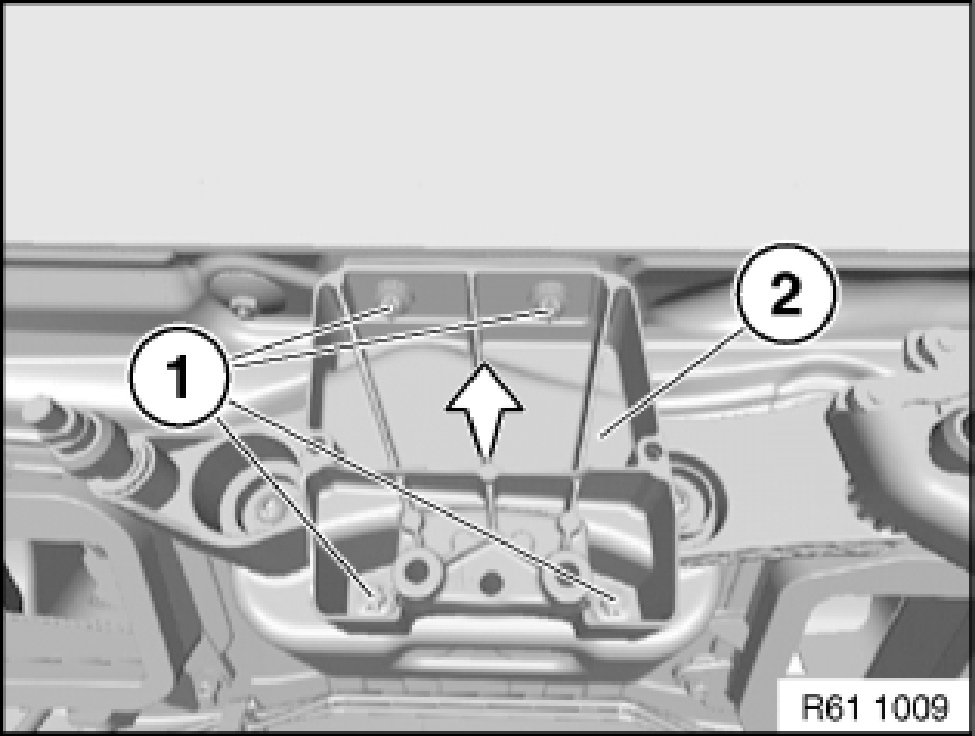

Release screws (1).

Installation:
Tightening torque 24 Nm.


Remove cross-strut bearing block (2) in direction of arrow.

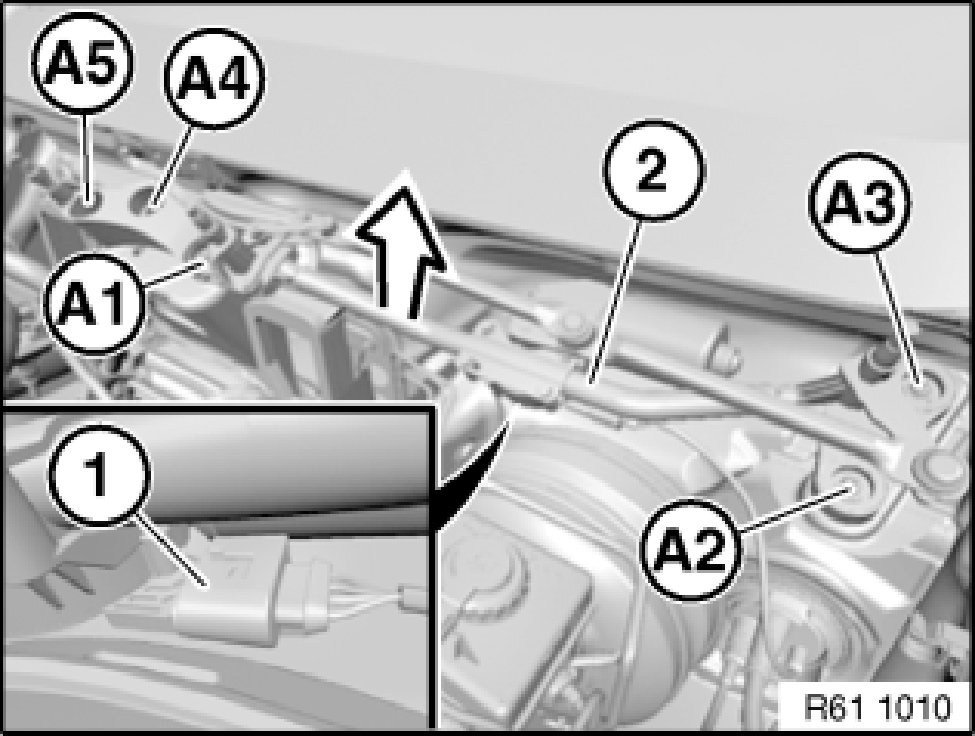

Unfasten plug connection (1) and disconnect.
Release screws (A5...A1).

Installation:
Insert screws (A1...A5) in specified sequence until hand-tight.
To tighten down screw (A2), if necessary move complete wiper console linkage (2) into reversal position.
Tighten down screws (A1...A5) in specified sequence to 10 Nm.

Lever out complete wiper console (2) in direction of arrow.
