Press Out

11 22 513 - Replacing roller bearing for dual-mass flywheel





Special tools required:
- 21 2 051 Tools and Equipment
- 21 2 052 Tools and Equipment





Note:
Flywheel removed!

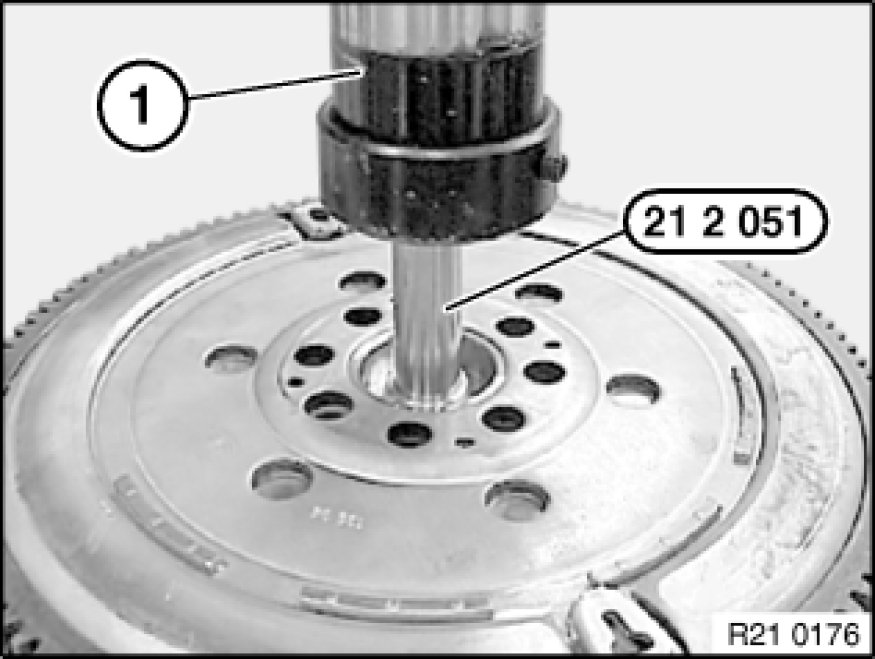

Using hydraulic press (1) and special tool 21 2 051 Tools and Equipment, press out dual-mass flywheel downwards on engine side.

Important!
Risk of damage:

Roller bearing must not be driven out.

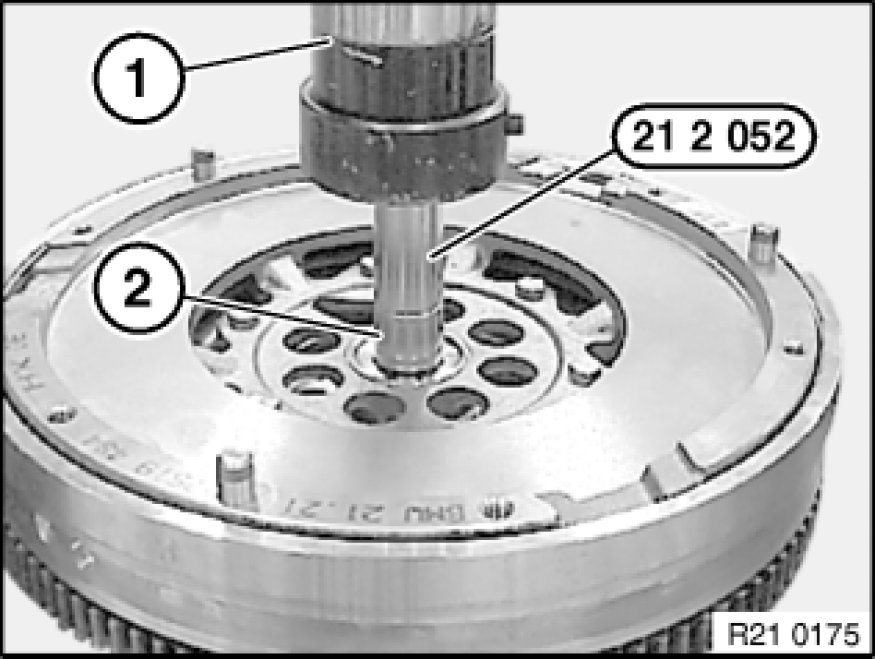

Push roller bearing (2) onto special tool 21 2 052 Tools and Equipment.

Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.

Important!
Risk of damage:

Observe press-in instruction:

- Roller bearing must not be driven in.
- Roller bearing mounting force/travel monitored:
Min. 2000N 1 mm before end of pressing in.
Max. 15000N during entire press-in procedure.
