Home >> BMW >> 2005 >> 645Ci Convertible (E64) V8-4.4L (N62) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Specifications

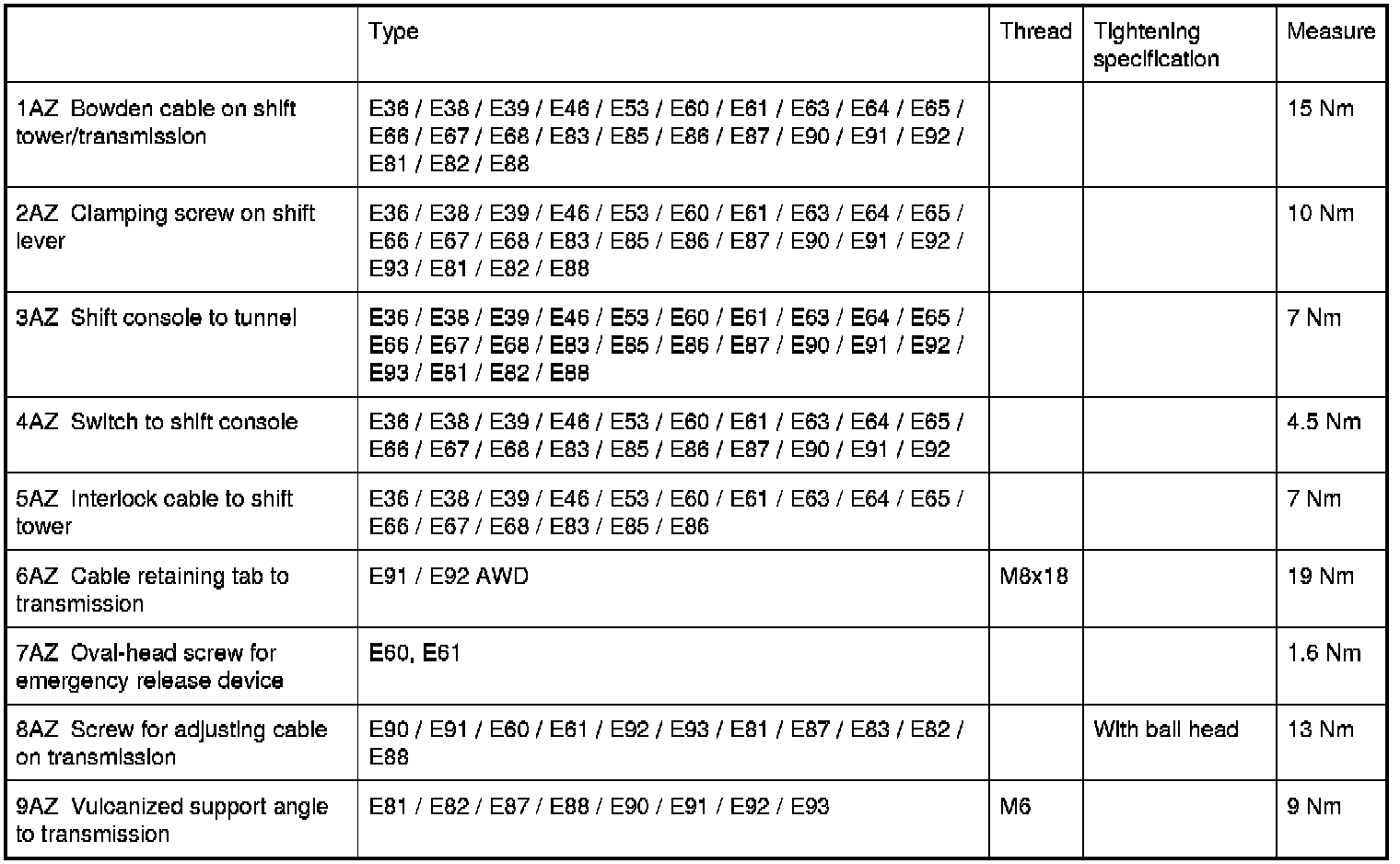

Shifter A/T: Specifications




25 16 Shift Console - Automatic Transmission
