Removing and Installing/Replacing DYNAMIC DRIVE Holder/Valve Block

37 20 505 - Removing and installing/replacing DYNAMIC DRIVE holder/valve block





Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off pipe connections with plugs.

After installation:
- Fill and bleed hydraulic system Bleeding Power Steering (Version with Dynamic Drive)

- Check pipe connections for leaks

- If necessary, carry out initial operation for Dynamic Drive Initial Inspection and Diagnostic Overview





Necessary preliminary tasks:
- Remove valve block Removing and Installing/Replacing DYNAMIC DRIVE Valve Block

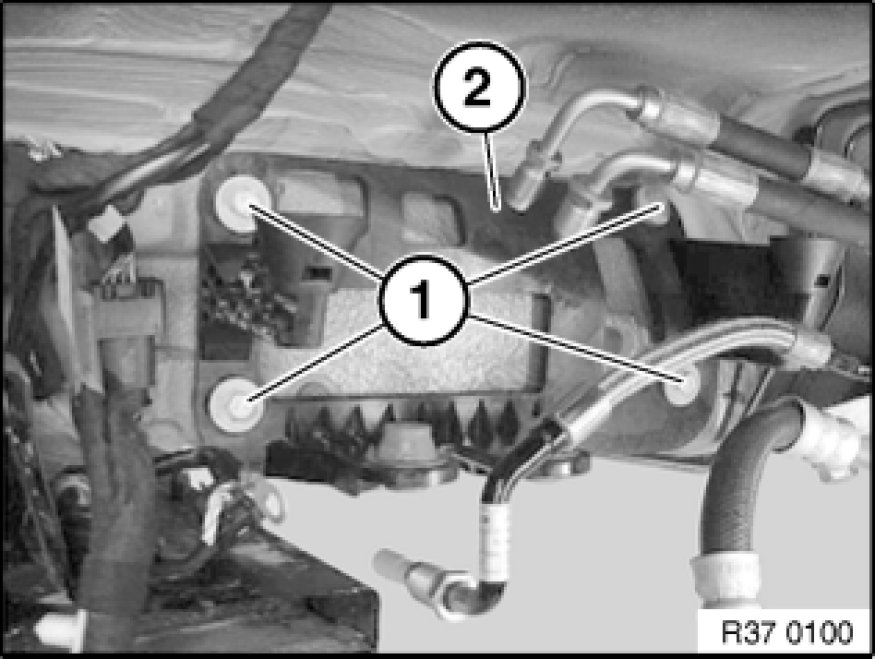

Release screws (1).
Tightening torque 37 14 20AZ Electric Components.
Take off holder (2).
