BMW Electrical System Basics
>>
Basic Electricity
>>
Common Circuit Designations
Common Circuit Designations
Common Circuit Designations

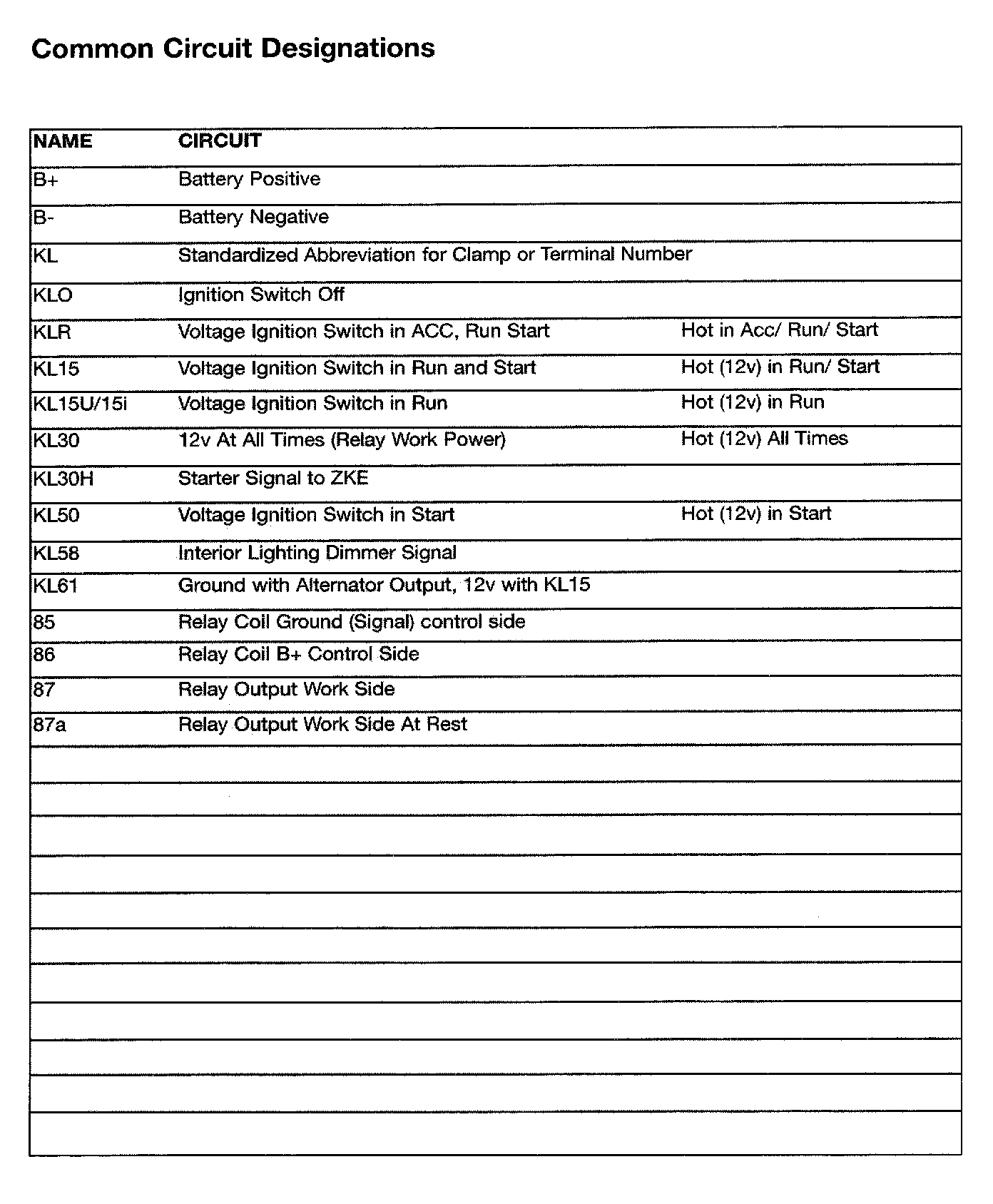

Common Circuit Designations:
