Home >> BMW >> 2005 >> 645Ci Convertible (E64) V8-4.4L (N62) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Technical Data >> Cylinder Head with Valve Seat Cover N62 / B44

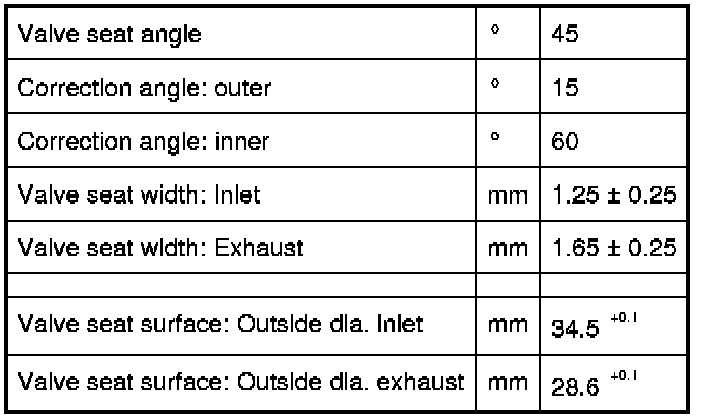

Cylinder Head with Valve Seat Cover N62 / B44




11 12 Cylinder Head with Valve Seat Cover N62 B44
