Clockspring Assembly / Spiral Cable: Service and Repair

61 31 011 - Removing and installing/replacing volute spring cassette (up to 09/05)





Necessary preliminary tasks:
- Remove fixture for steering column stalk Removing and Installing/Replacing Fixture For Steering Column Stalk (Up to 09/05)

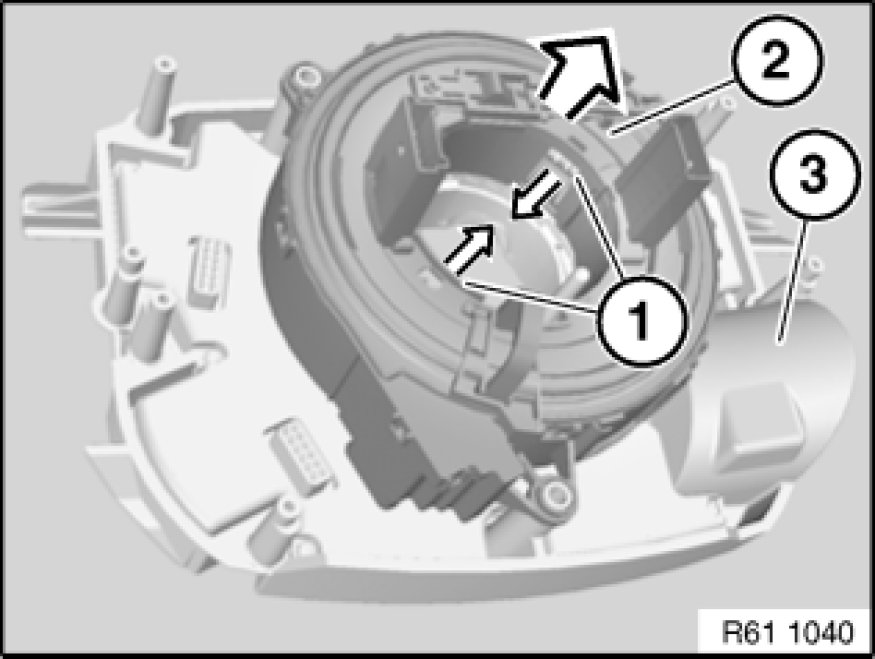

Unlock catches (1) and remove volute spring cassette (2) in direction of arrow from fixture for steering column switch (3).





Installation:

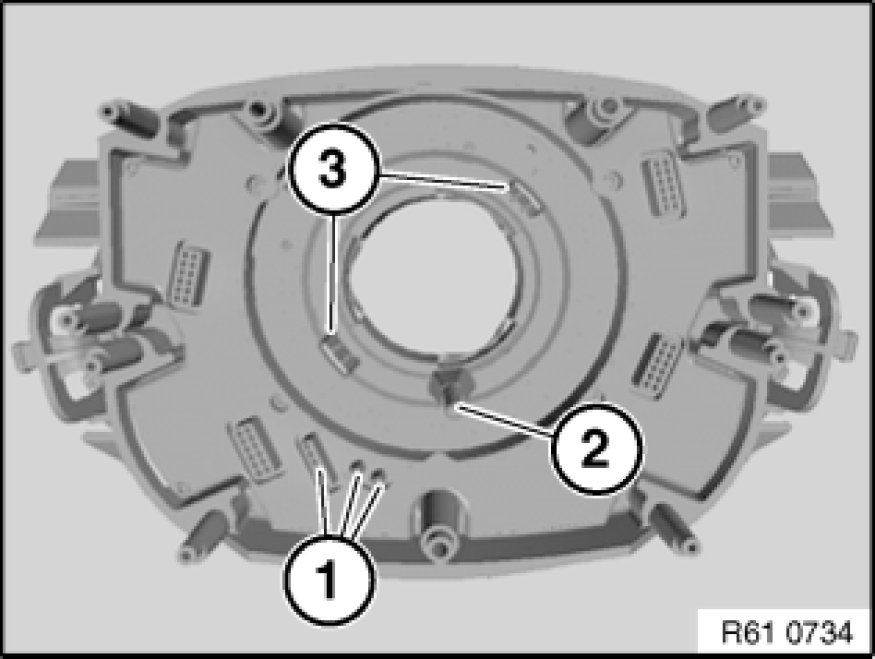

Seat volute spring cassette exactly on plug connections (1), guide (2) and mounts (3).
