Replacement

Replacement





The electronic components must be replaced as described in the repair instructions and following the procedure described on SIP Electrostatic Fundamentals, while observing ESD safety measures.

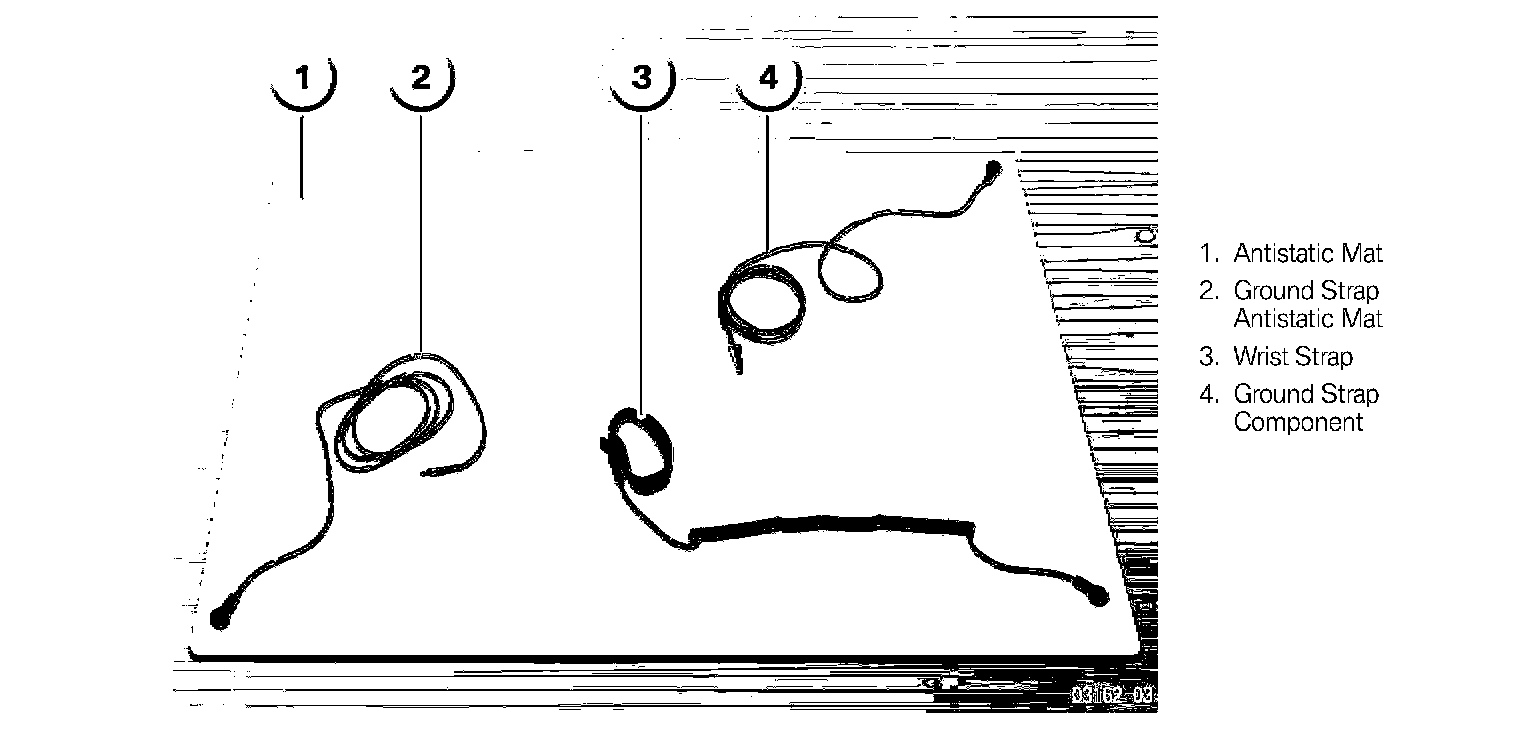

Note: The Antistatic Mat at your Center may look different than the one shown here or at the training center. Remember the following when using the Antistatic Mat:
^ Ground the Antistatic Mat to the workbench using the attached lead

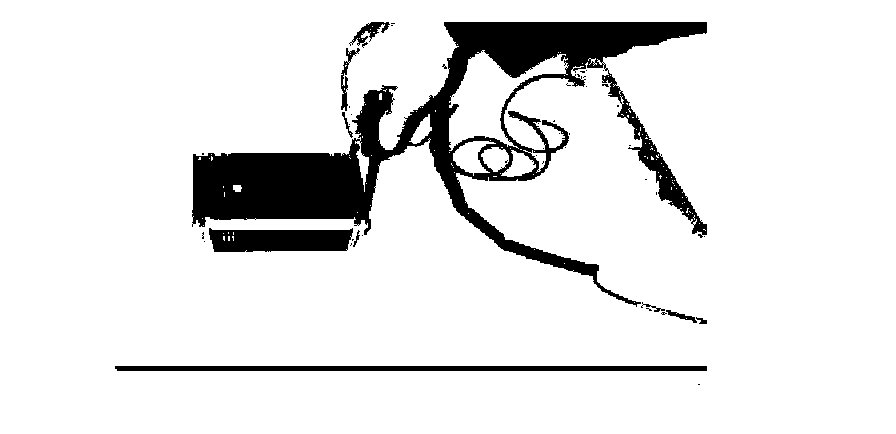

^ Attach the Grounding strap to the component being serviced
^ Always wear the wrist cuff.
