Variable Induction Control Actuator: Service and Repair

11 61 095 - Removing and installing/replacing DISA adjustment unit









Installation location:
Reverse side, intake air manifold.

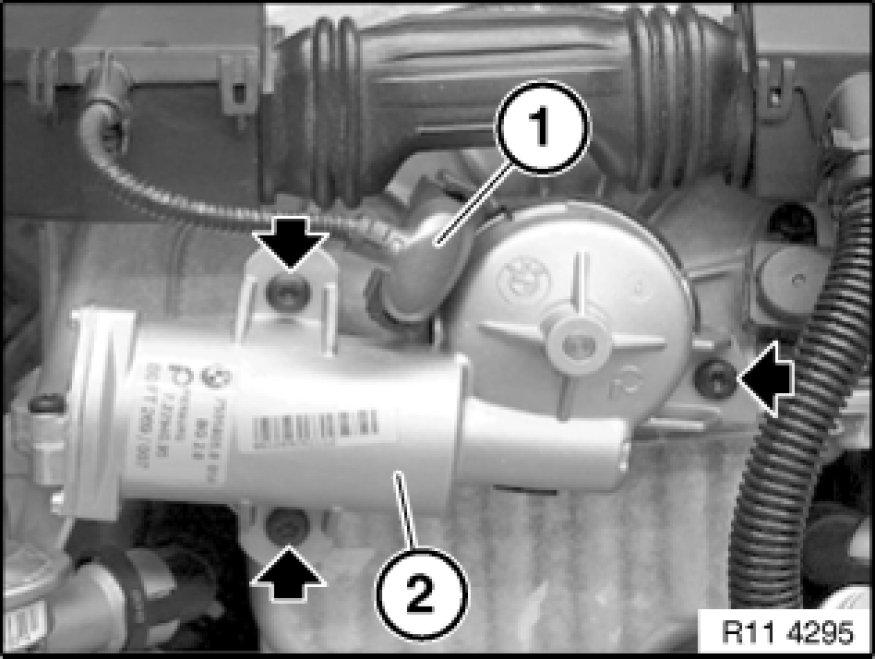

Unlock plug (1) and disconnect from DISA adjustment unit (2) (DISA = differentiated air intake system).
Unfasten screws.

Installation:
Replace screws.

Withdraw DISA adjustment unit (2) from intake air manifold.

Installation:
Rotate drive shaft on adjustment unit (2) into correct position.
