11 13 020 Removing and Installing / Replacing Oil Sump Bottom Section

11 13 020 Removing and installing/replacing oil sump bottom section (N62)

Necessary preliminary tasks:

- Remove reinforcement plate.





Open oil drain plug. Drain engine oil.

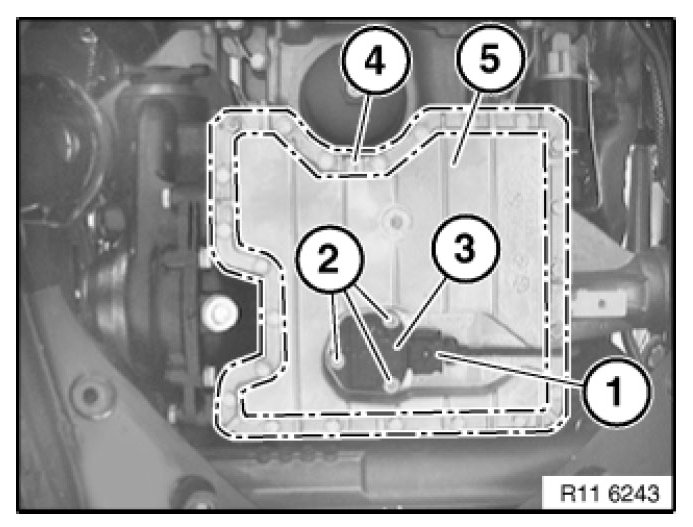

Unfasten plug connection on oil level switch (1).
Release screws (4) along line.
Remove lower oil sump section (5).

Installation:
Clean sealing surfaces.
Replace seal.
Insert all screws and tighten down along line (4).
Tightening torque: 11 13 2AZ
