Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

11 43 000 - Removing and installing/sealing guide tube for oil dipstick (N62)





Necessary preliminary tasks:
- Remove intake air manifold Service and Repair.
- Drain engine oil Service and Repair.





Note:
For purposes of clarity, this work step is shown on the engine after it has been removed.

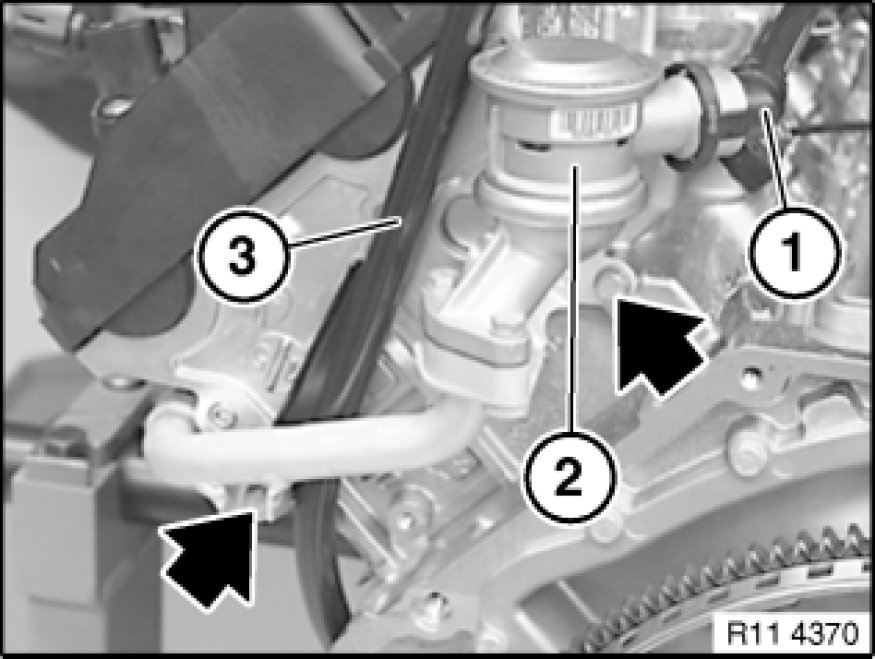

Unlock and detach vacuum line (1).

Release screws and remove check valve (2).
Remove guide tube (3) upwards.

Installation:
Replace sealing ring on guide tube.
Apply light coat of oil to seal.
Replacing sealing ring on check valve pipe.
Apply light coat of oil to seal.





Assemble engine.
Check engine for leaks.
