Mechatronics Interfaces

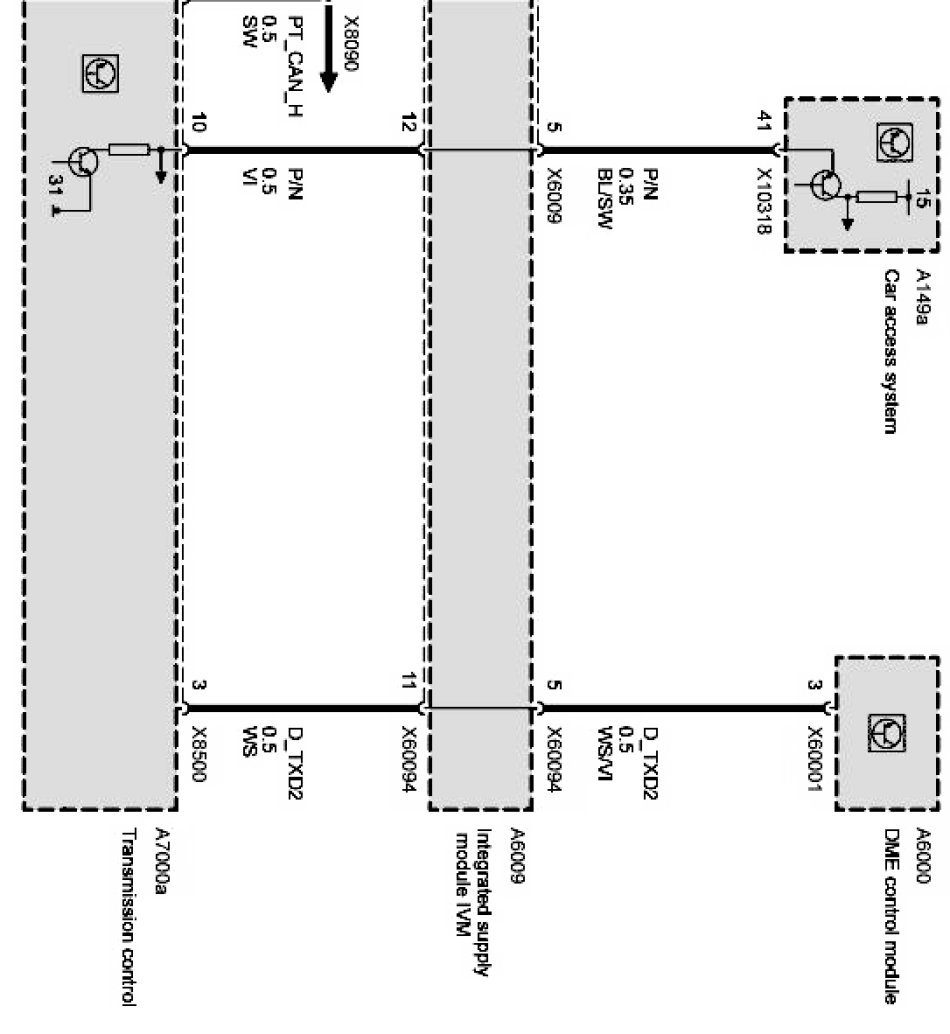

Supply, transmission control Part 1:

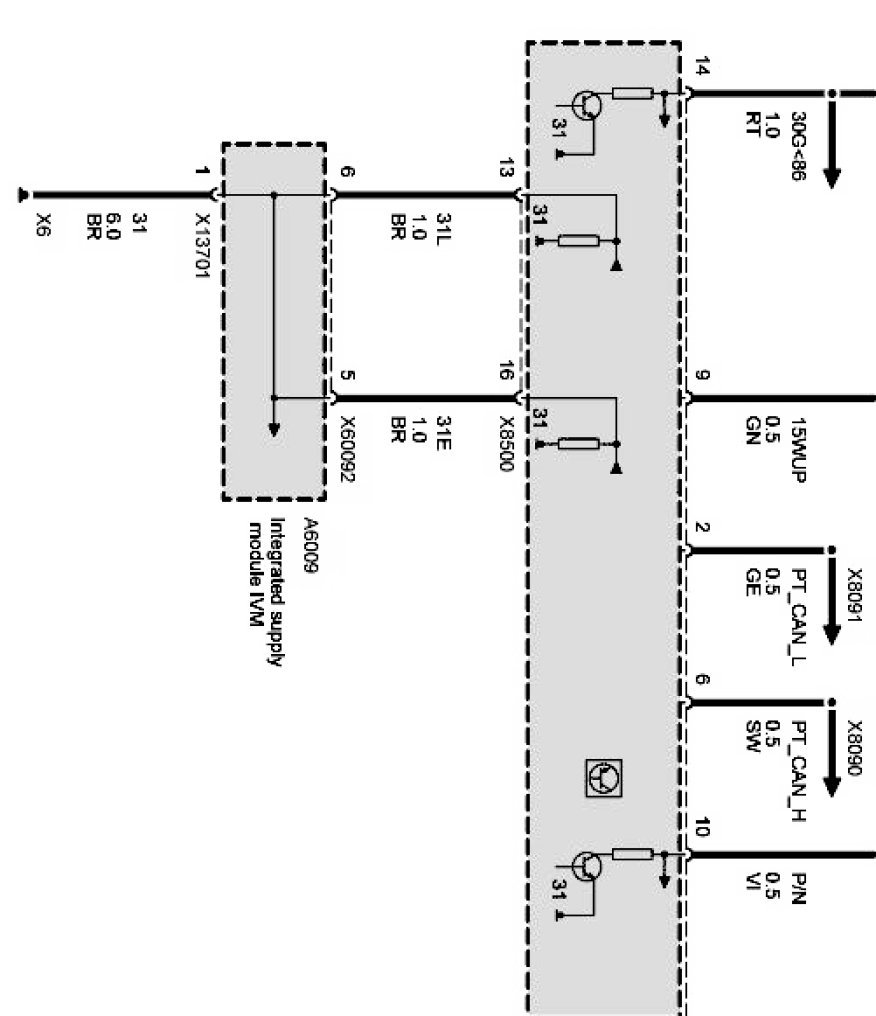

Supply, transmission control Part 2:

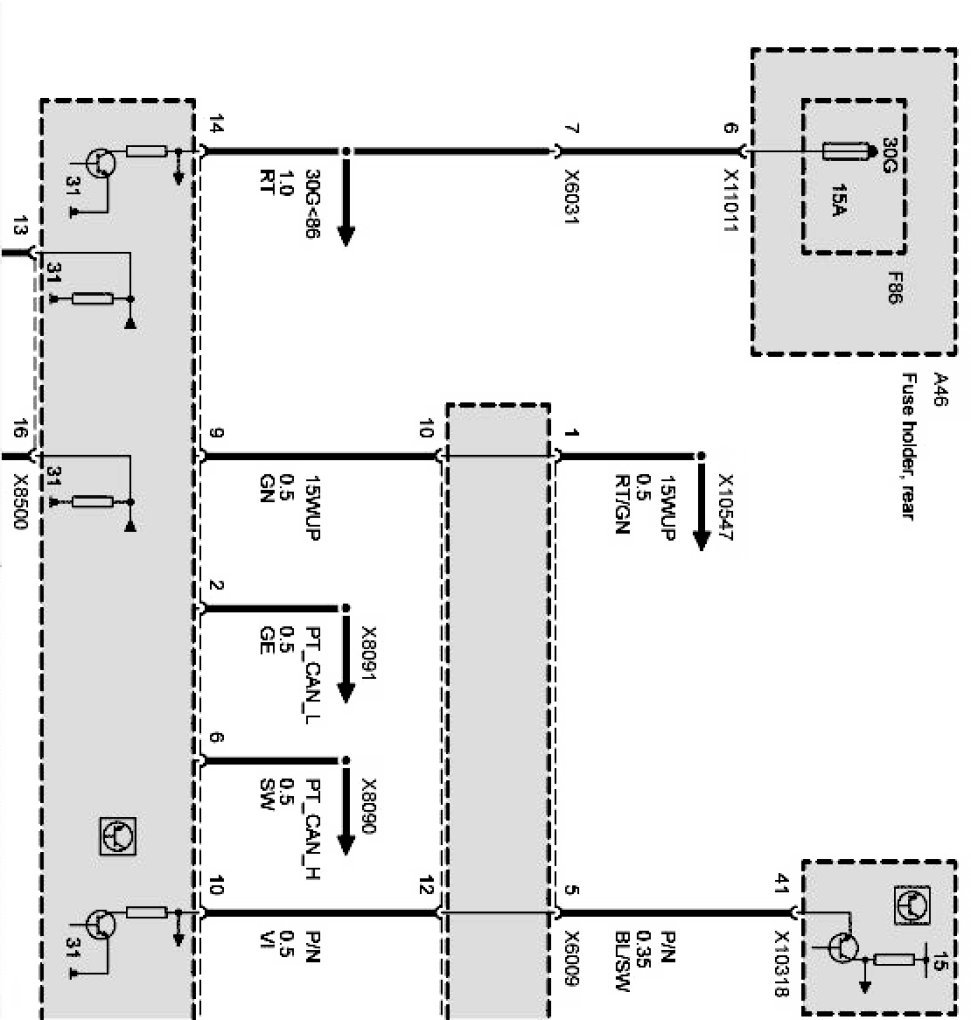

Supply, transmission control Part 3:
