Hydraulic Unit

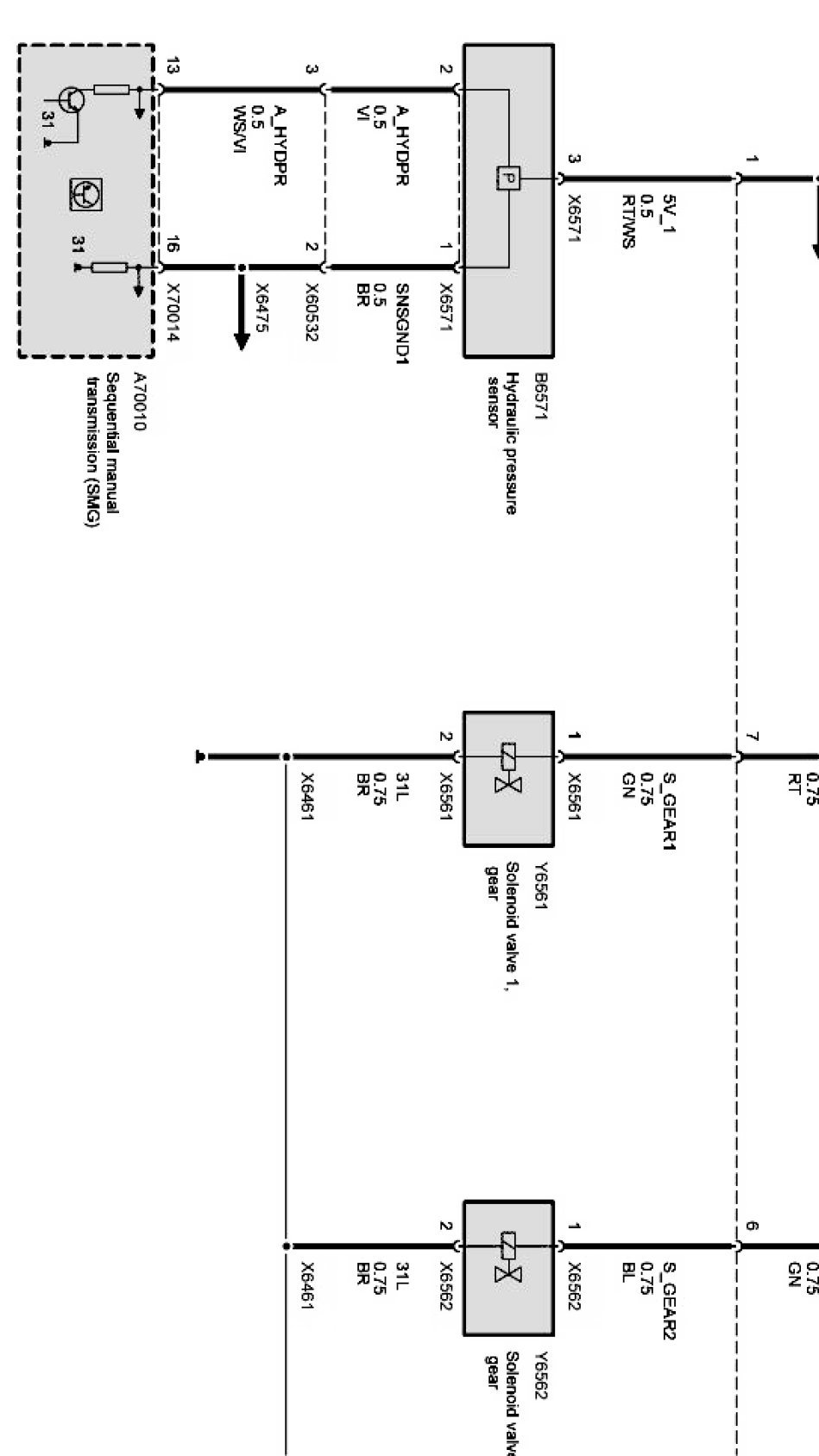

Hydraulic system SMG Part 1:

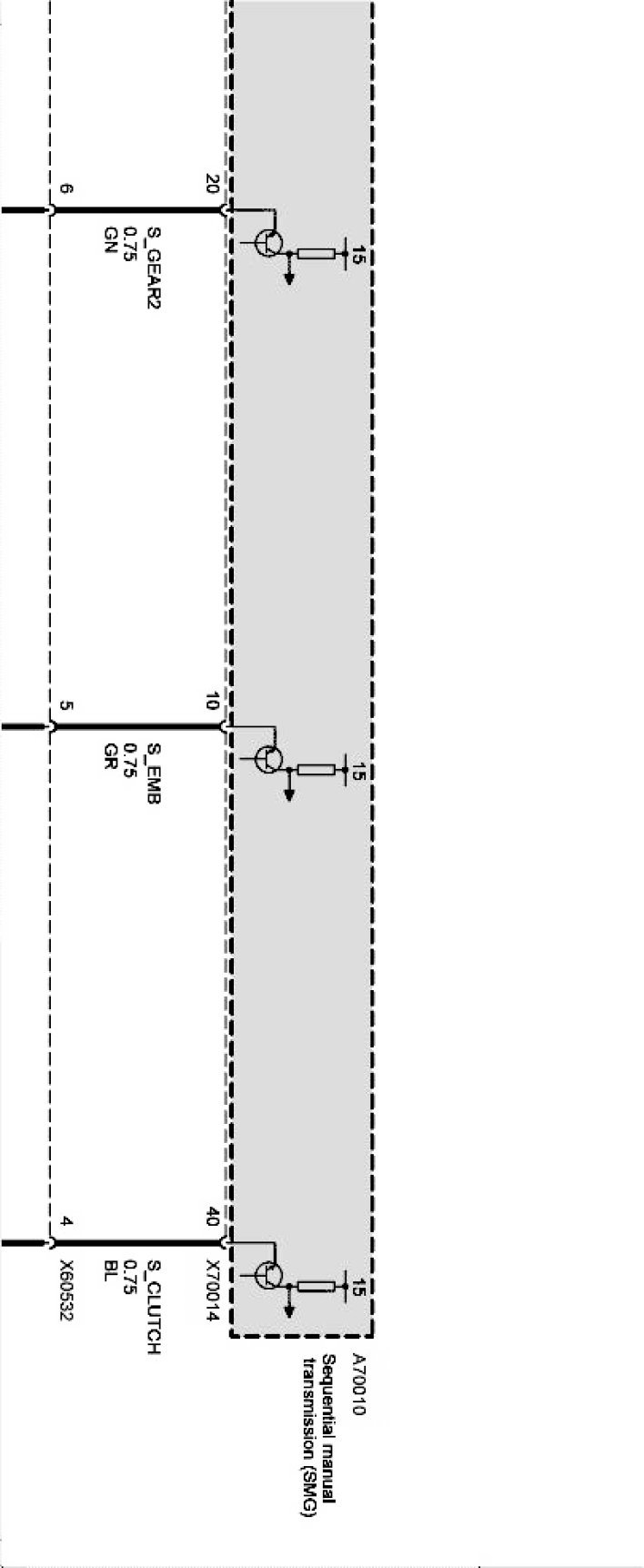

Hydraulic system SMG Part 2:

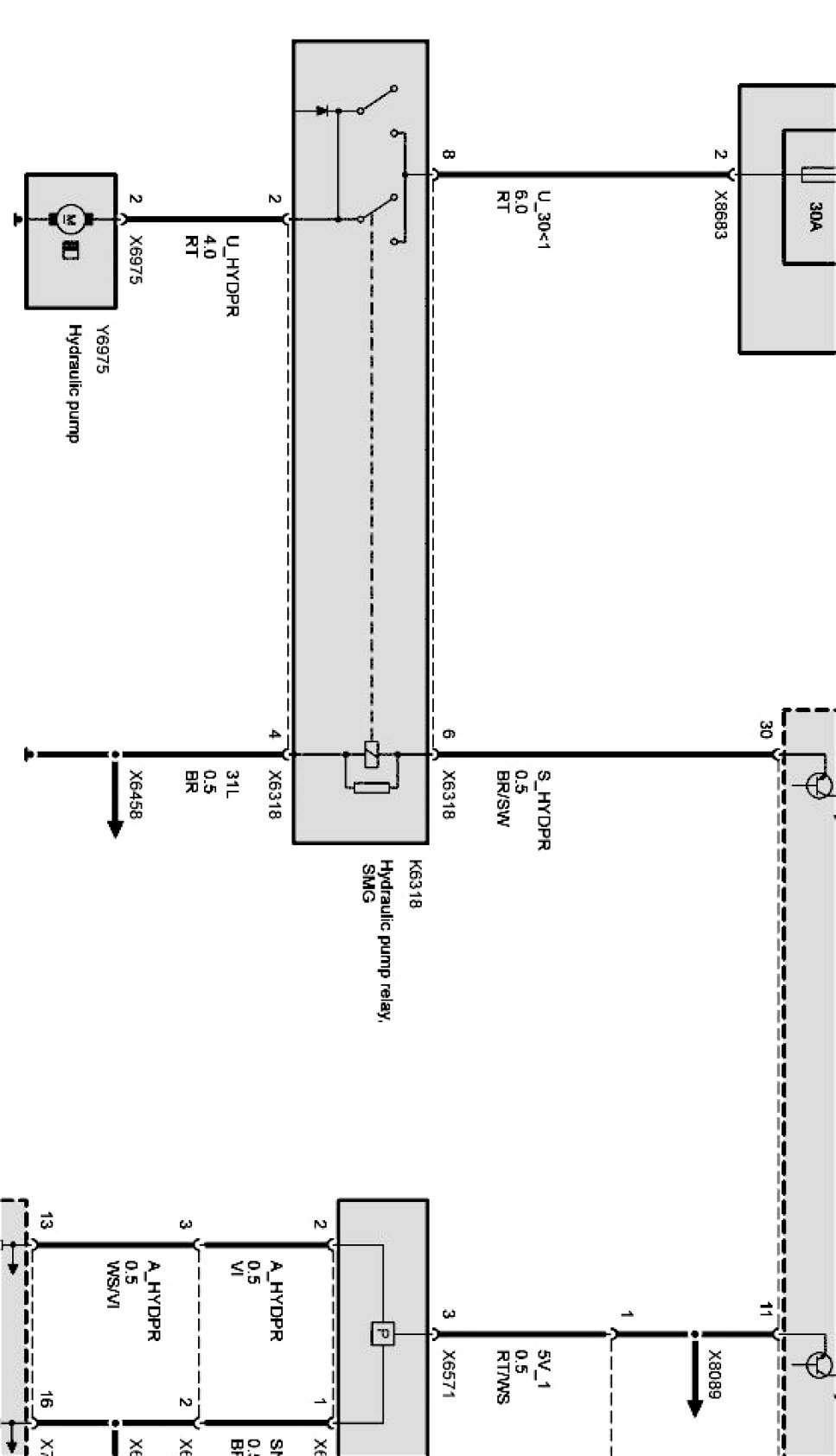

Hydraulic system SMG Part 3:

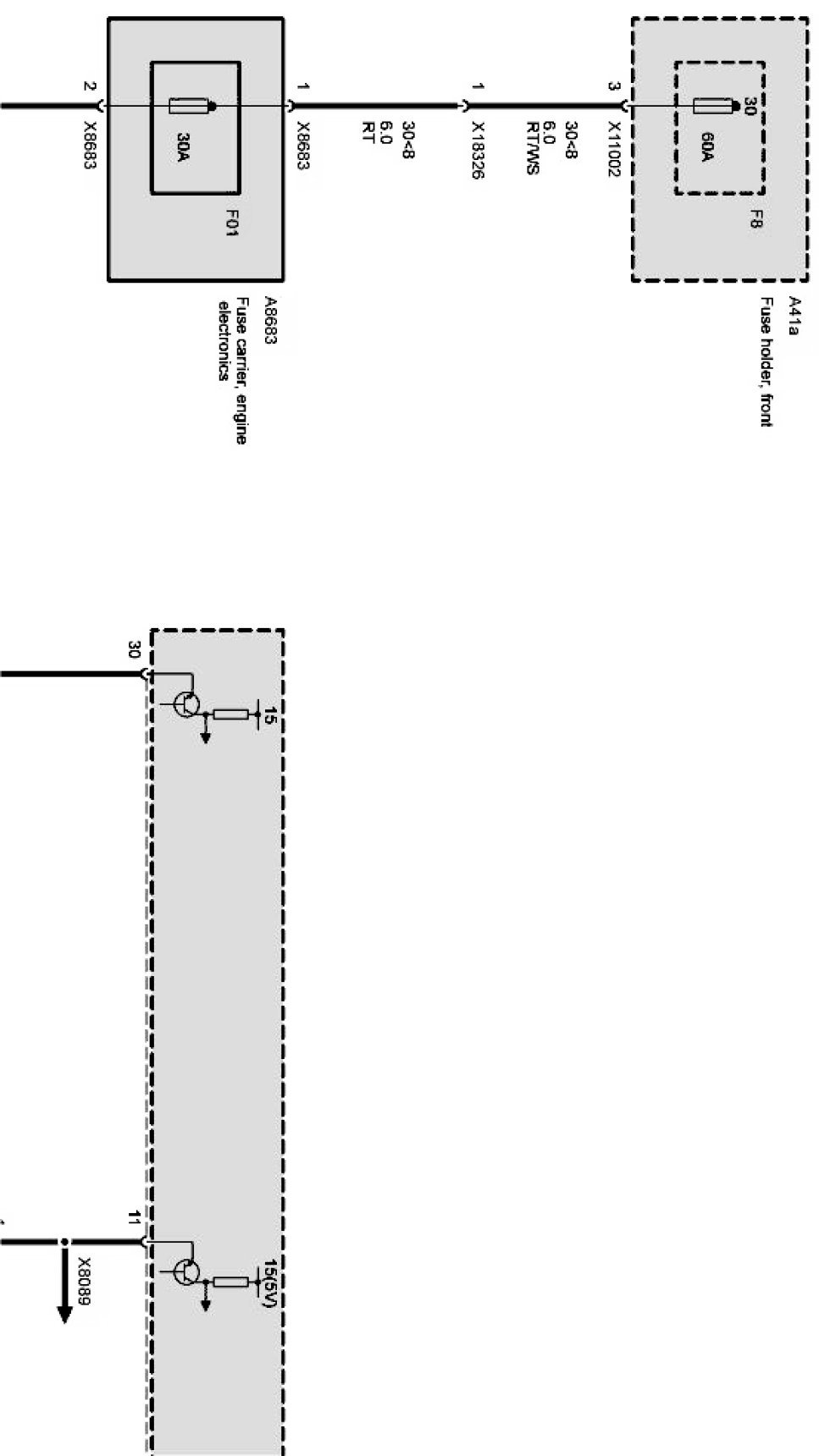

Hydraulic system SMG Part 4:

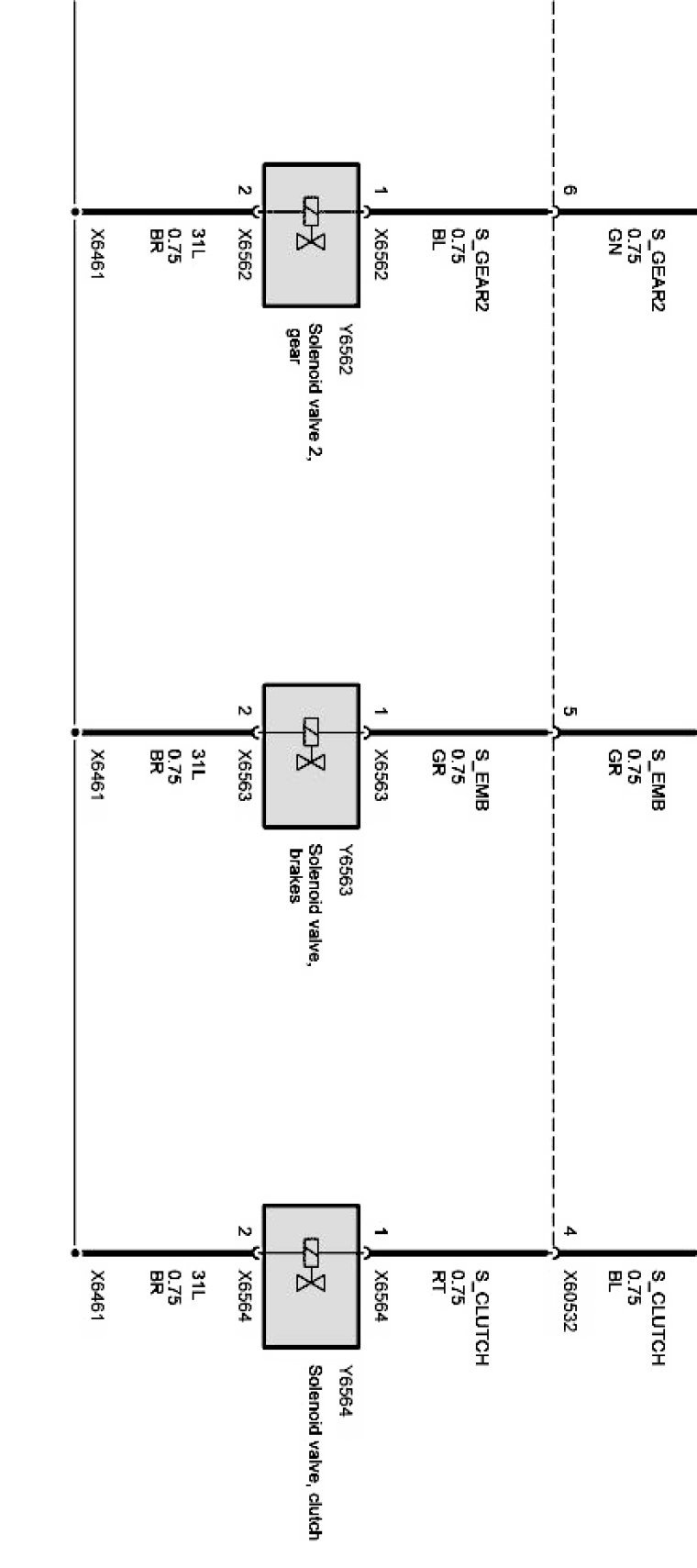

Hydraulic system SMG Part 5:

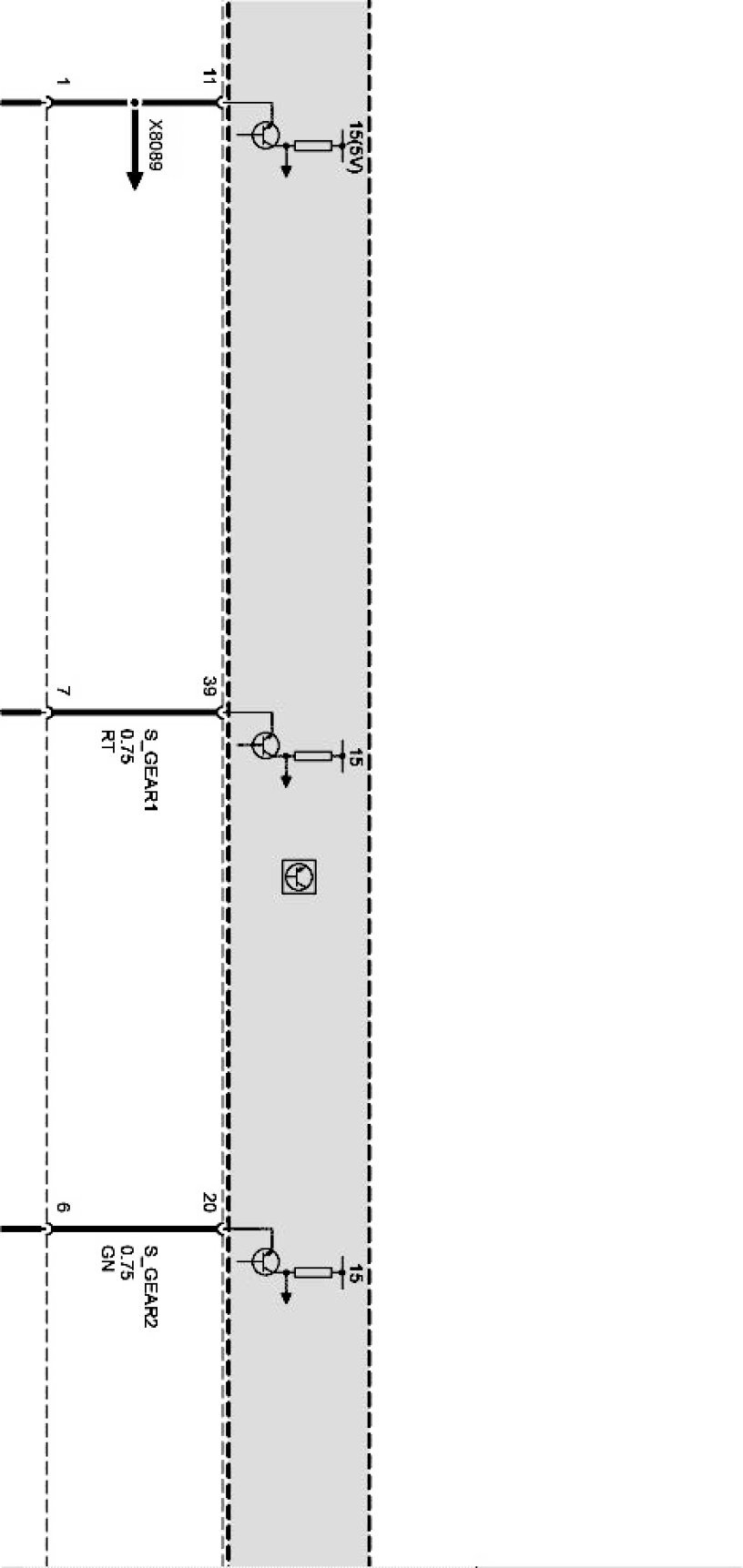

Hydraulic system SMG Part 6:
