Clutch Pedal Position Switch (N62 Engine W/O Automatic Transmission W/O SMG Sequential Manual Transmission)

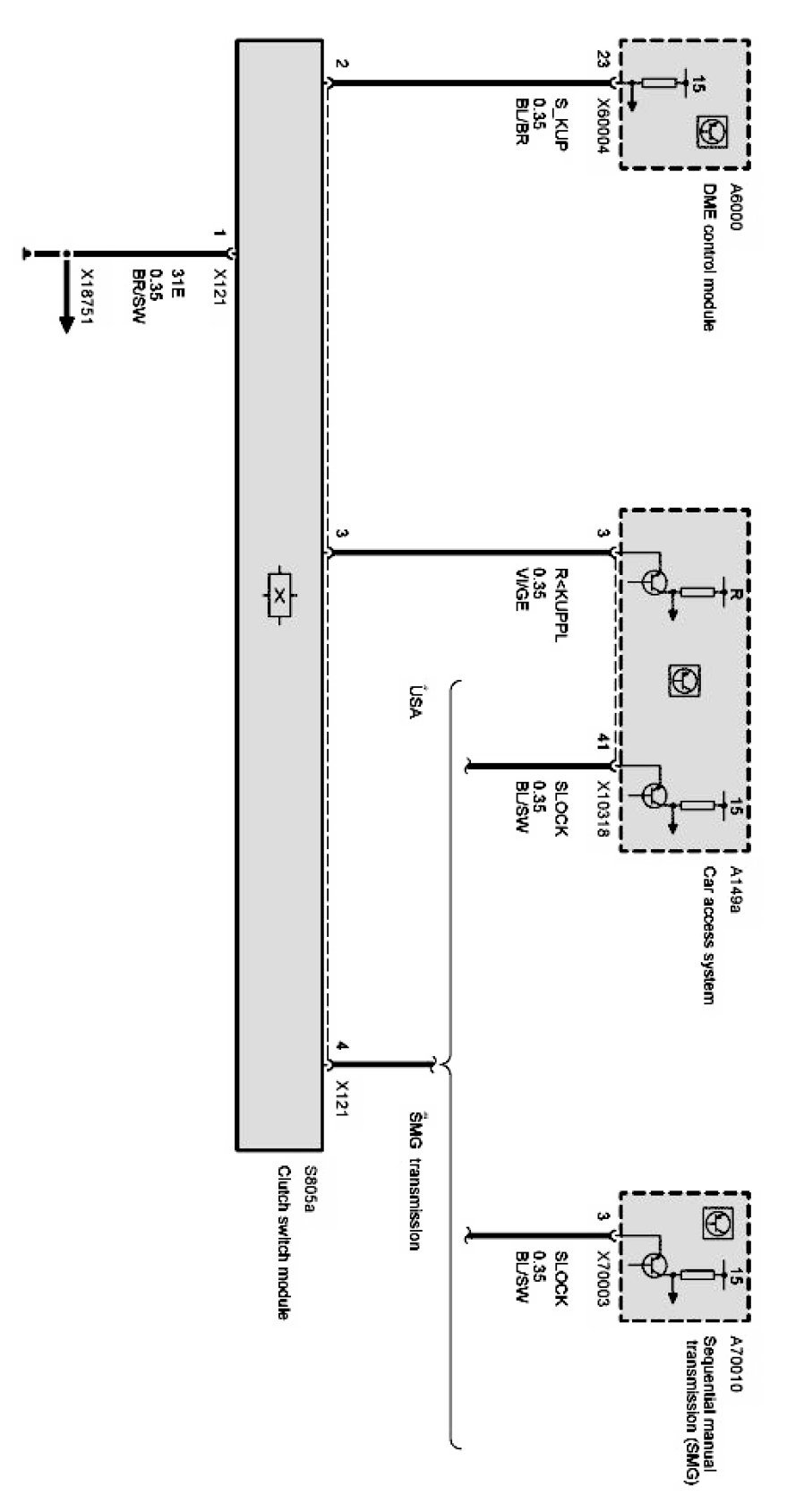

Clutch switch module:
