Home >> BMW >> 2005 >> 645Ci Convertible (E64) V8-4.4L (N62) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Engine Management ME9 (N62 or N62TU) >> Valve Gear >> VANOS Variable Camshaft Timing Control >> VANOS Solenoid Valves, Intake

VANOS Solenoid Valves, Intake

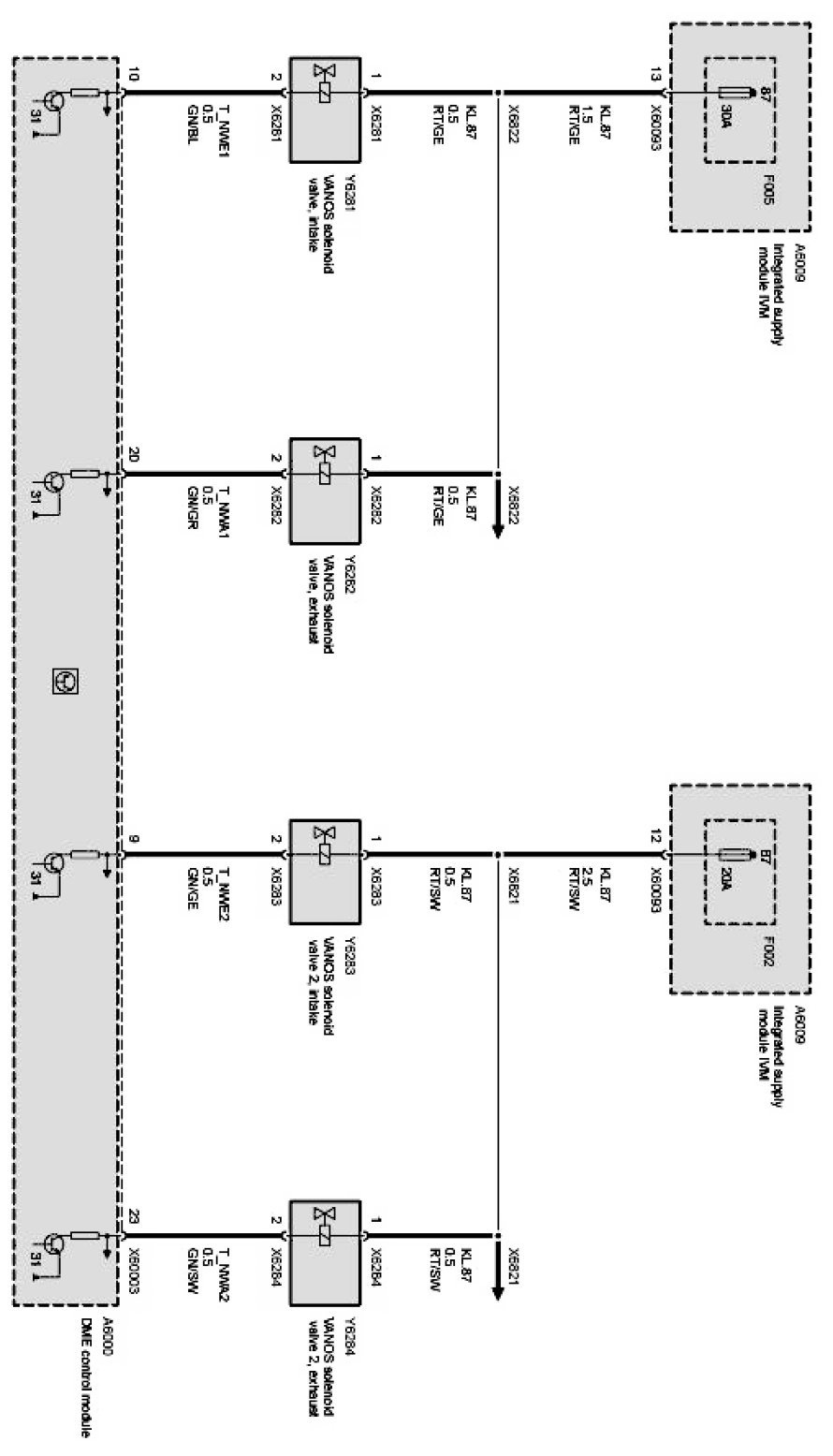

VANOS solenoid valves 1 and 2:
