Secondary Air Injection Pump (Up to 03/05)
Secondary Air Injection Pump (Up to 03/05)

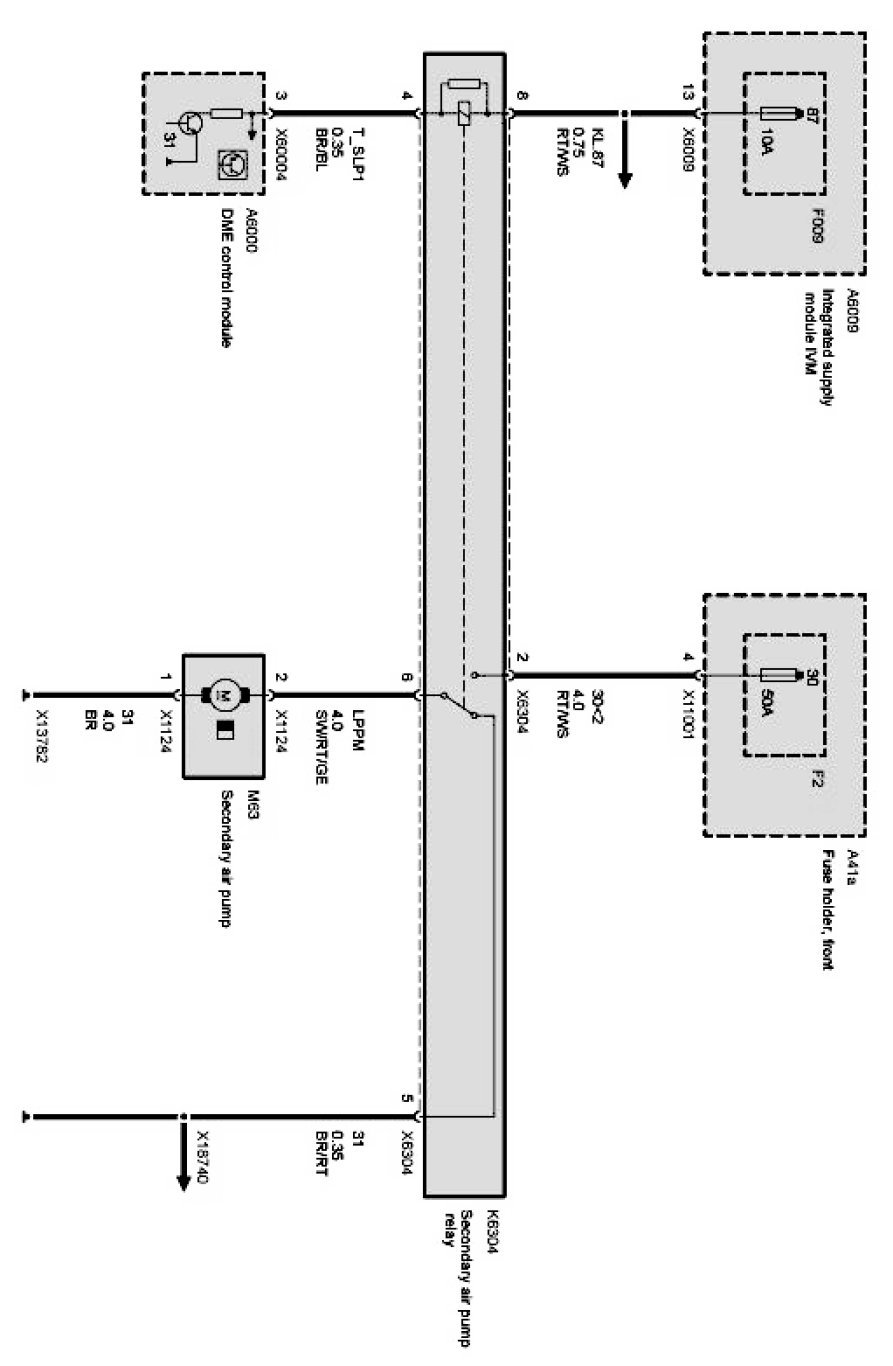

Secondary-air pump:
