Engine Cooling System (As of 03/05 Up to 09/05)

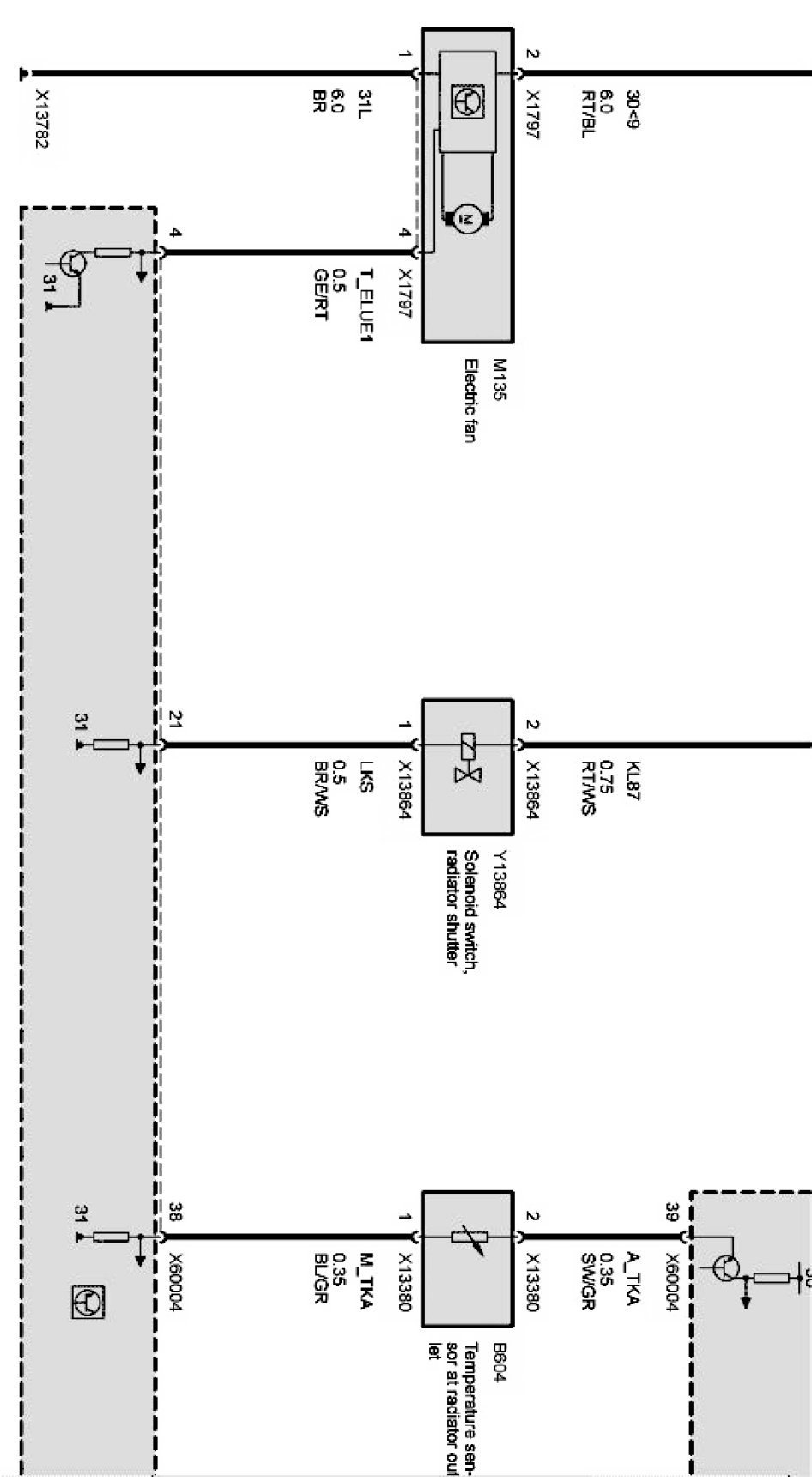

Engine cooling system Part 1:

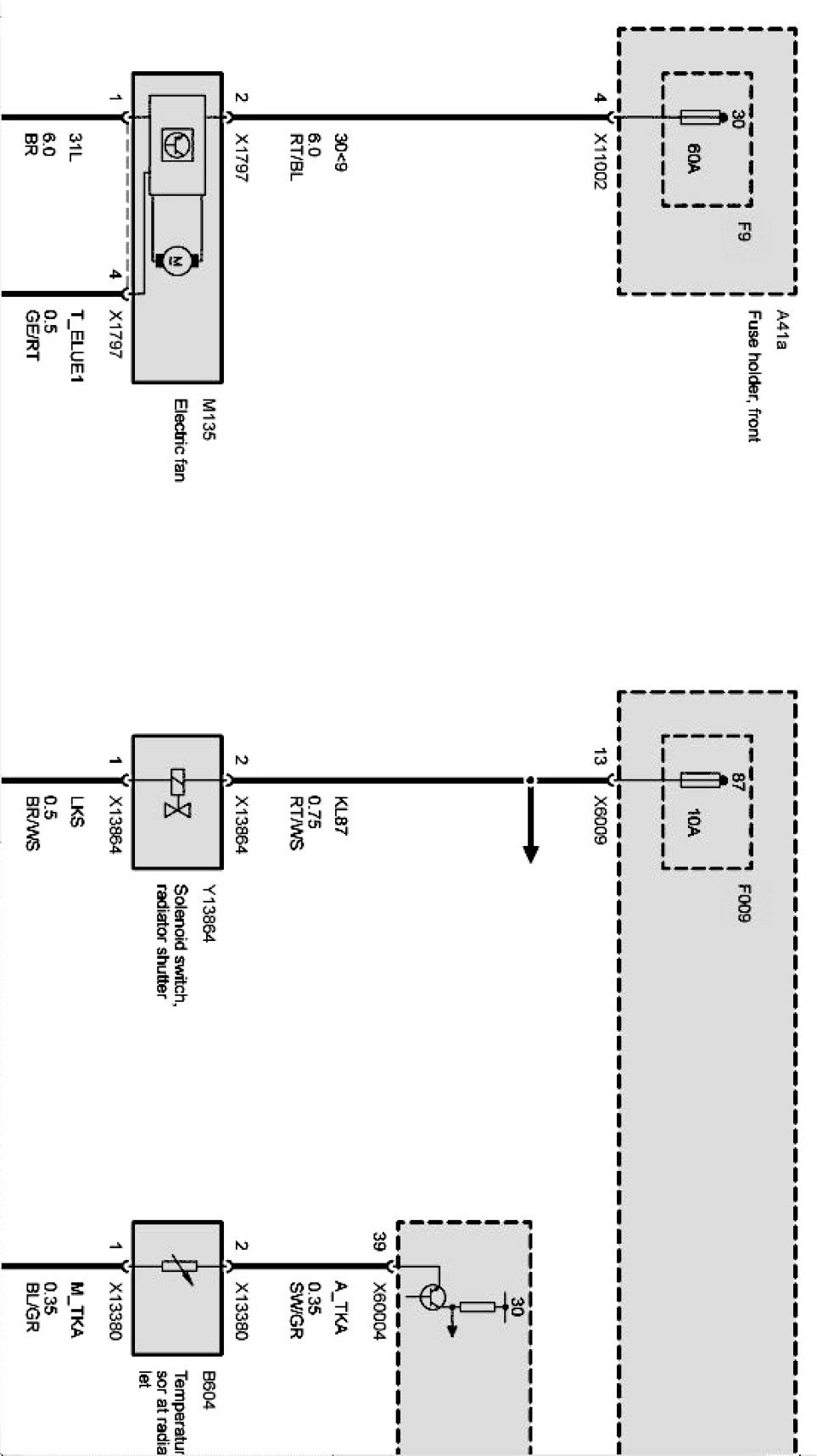

Engine cooling system Part 2:

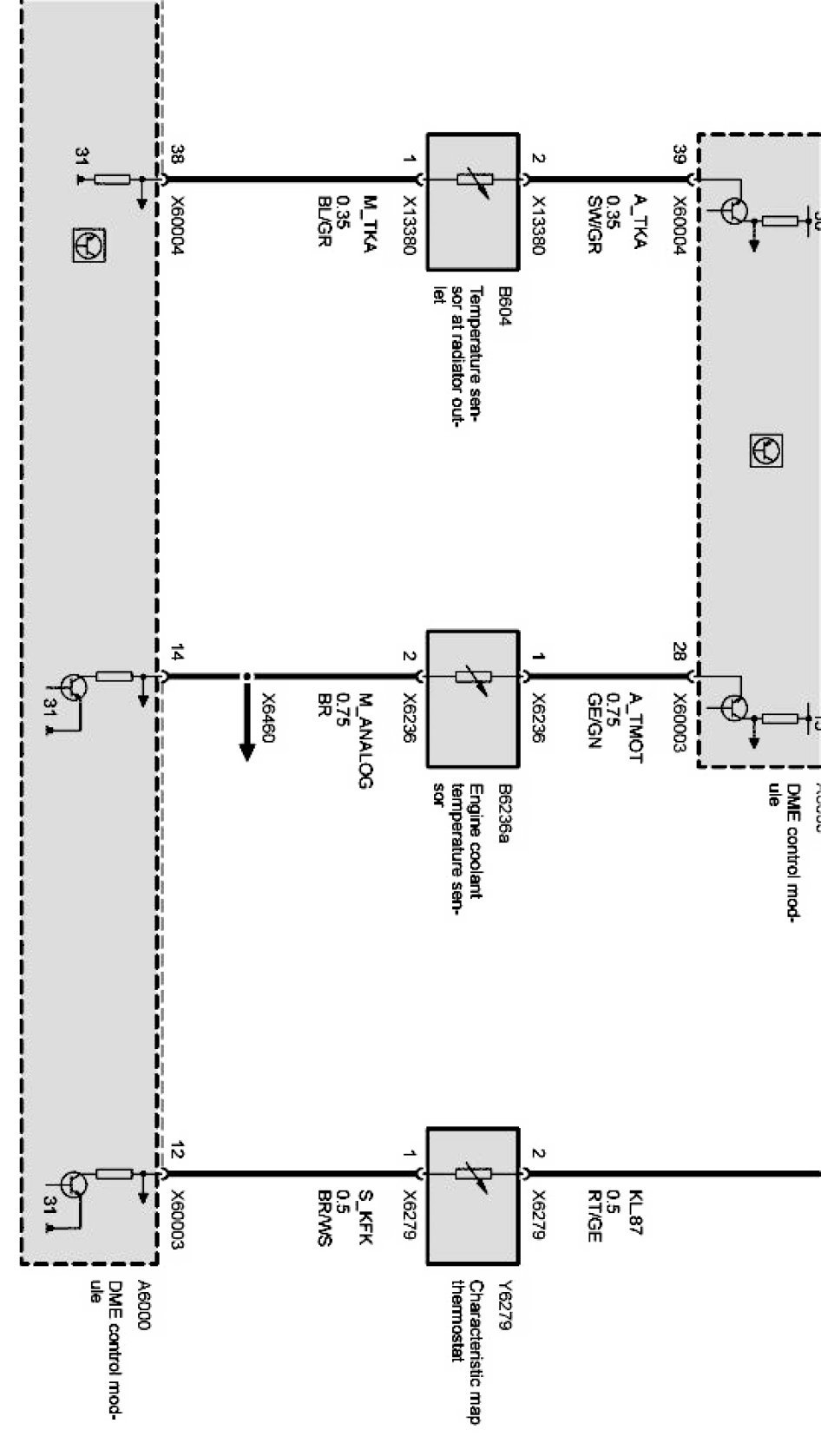

Engine cooling system Part 3:

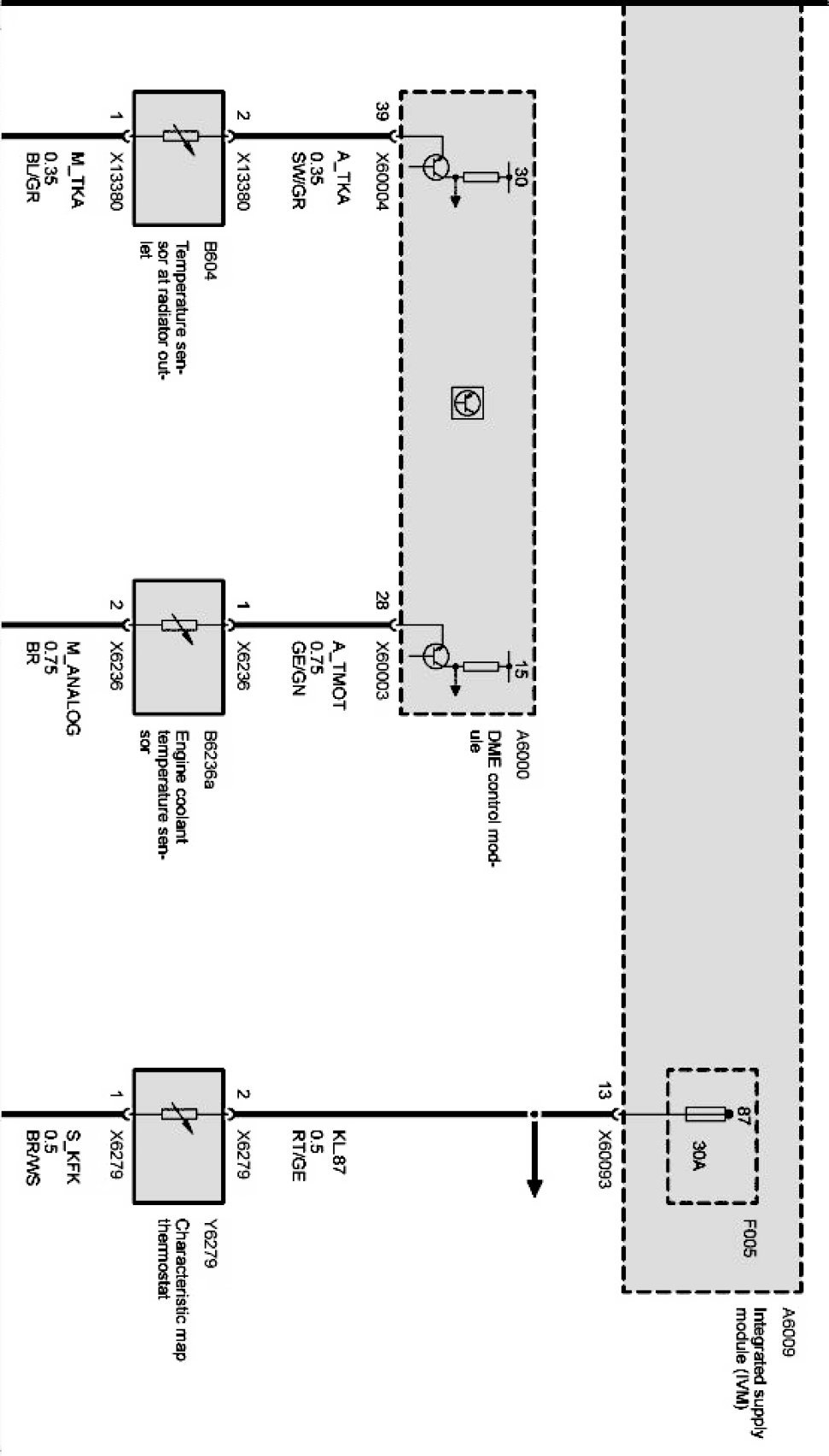

Engine cooling system Part 4:
