645Ci Convertible (E64) V8-4.4L (N62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Chassis
>>
Wheel Slip Control System (Except M5/M6)
>>
Sensor System
>>
Sensor System (Up to 09/05 With DSC Dynamic Stability Control Plus)
Sensor System (Up to 09/05 With DSC Dynamic Stability Control Plus)

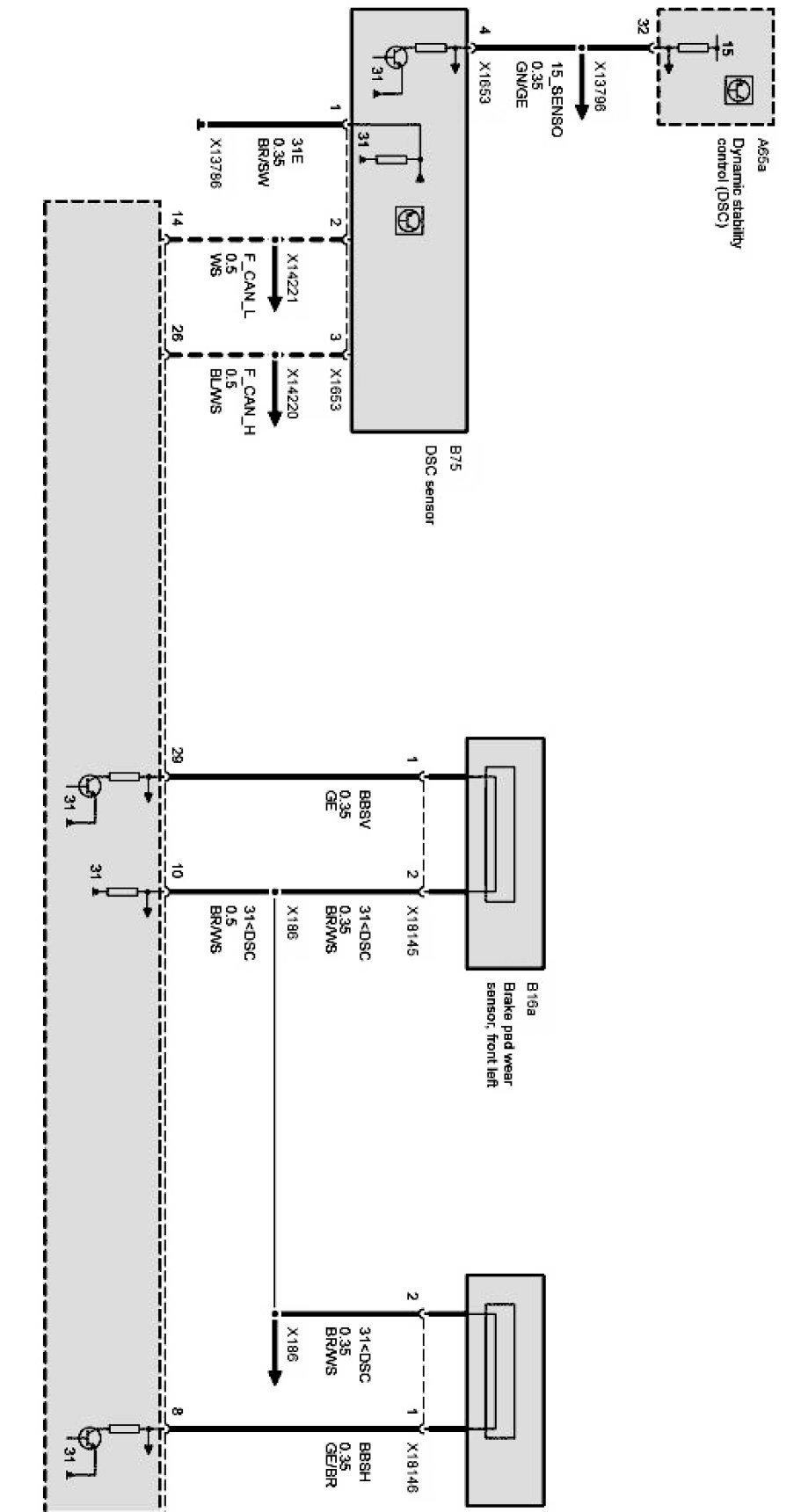

Sensor system Part 1:

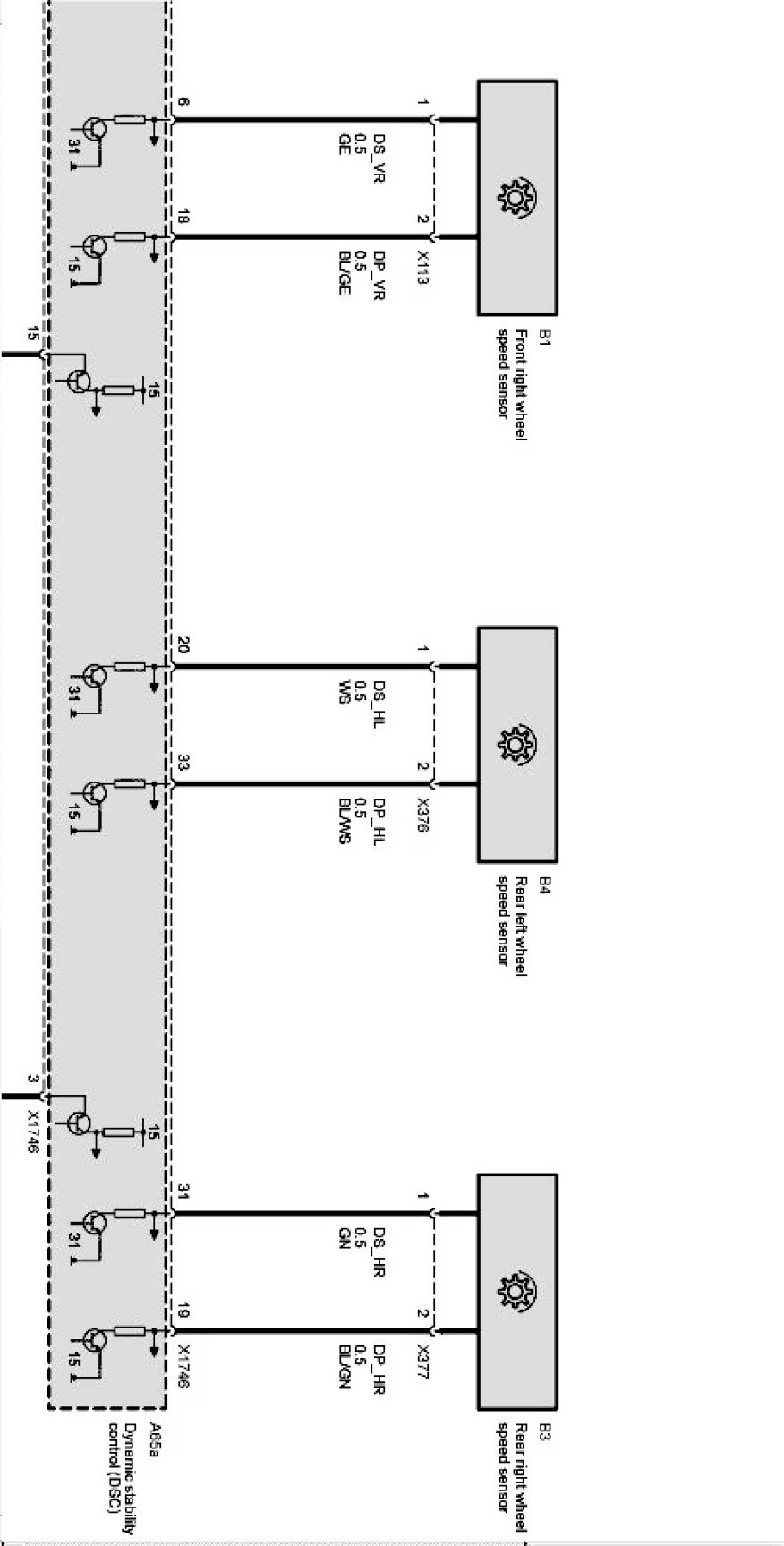

Sensor system Part 2:

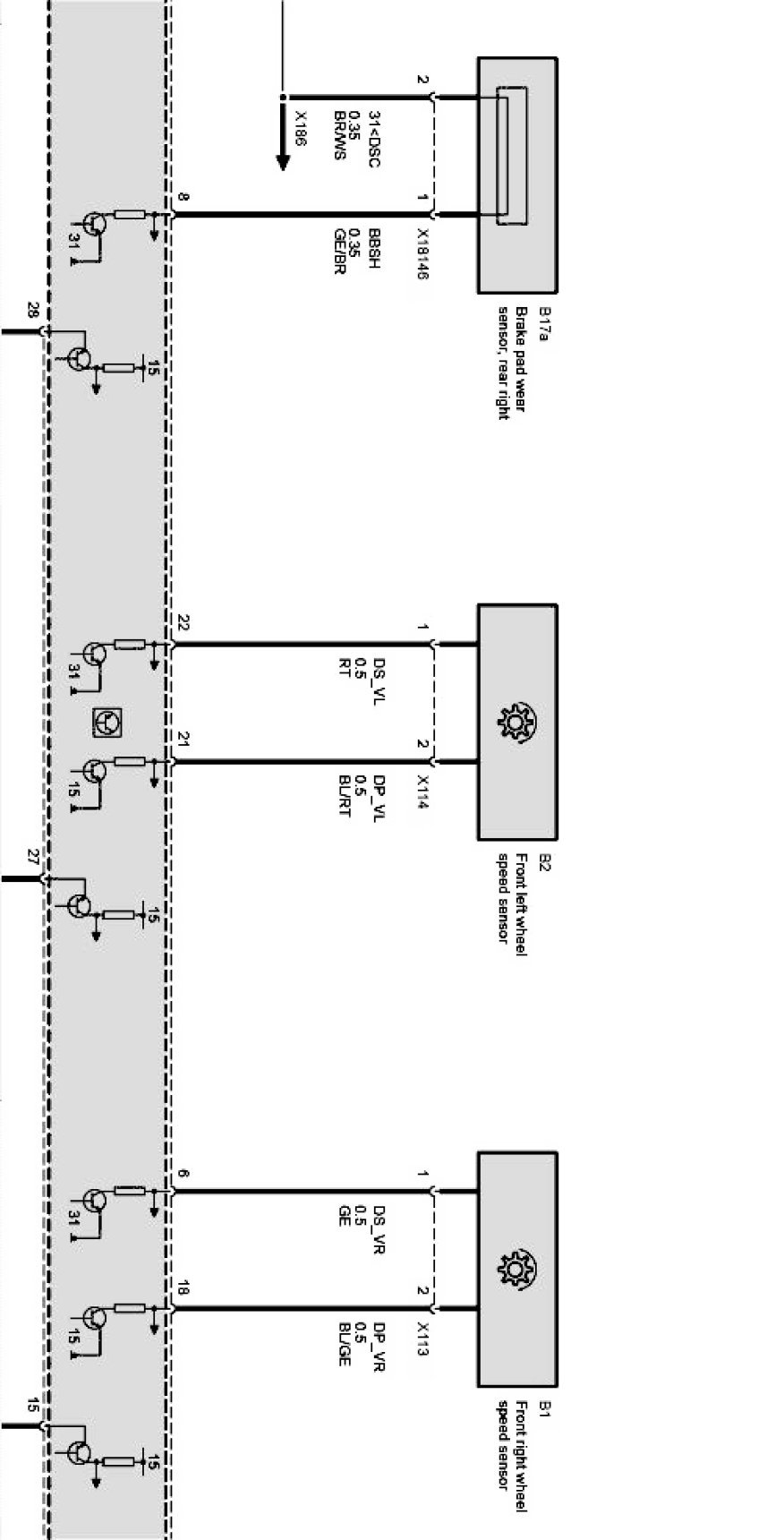

Sensor system Part 3:

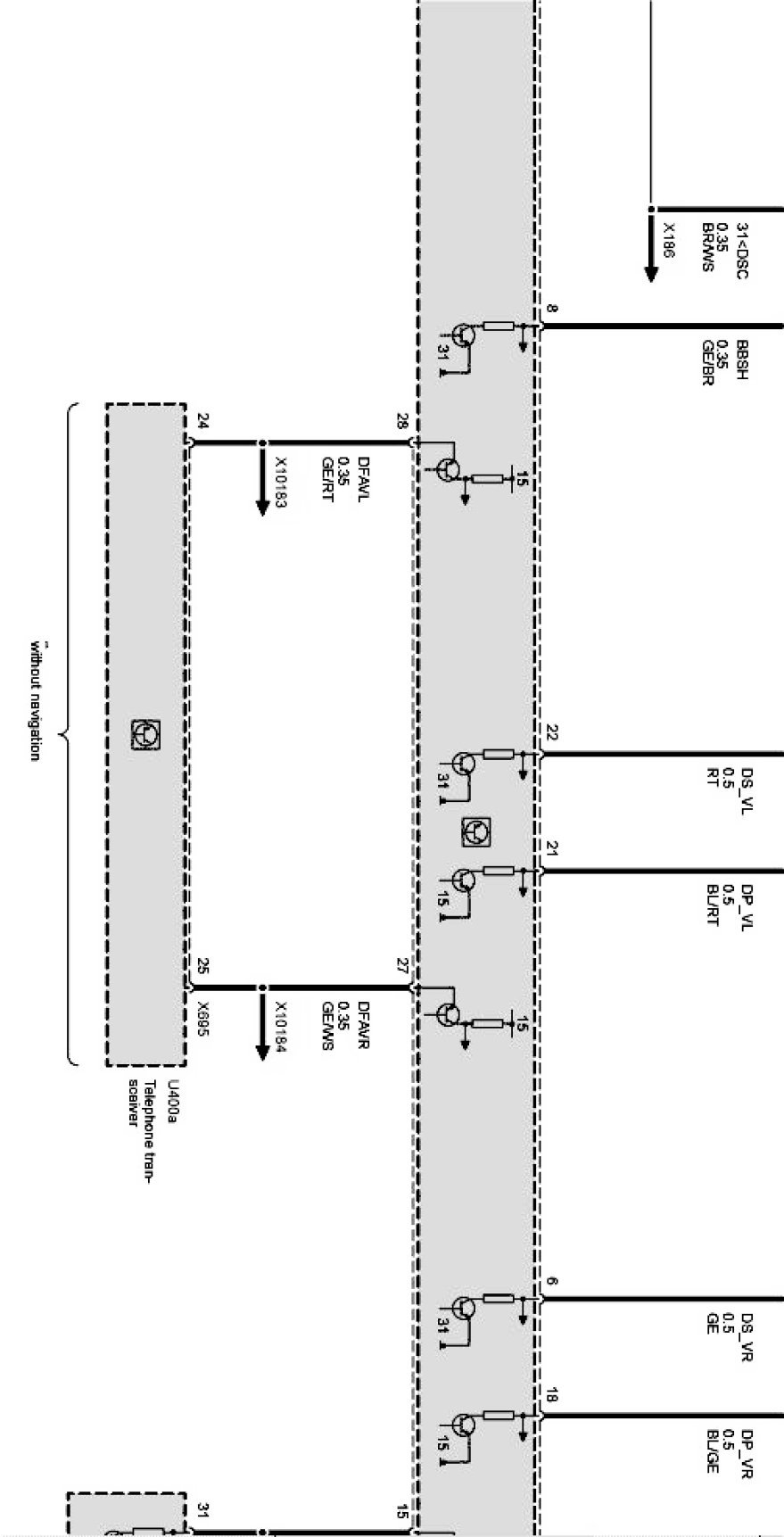

Sensor system Part 4:

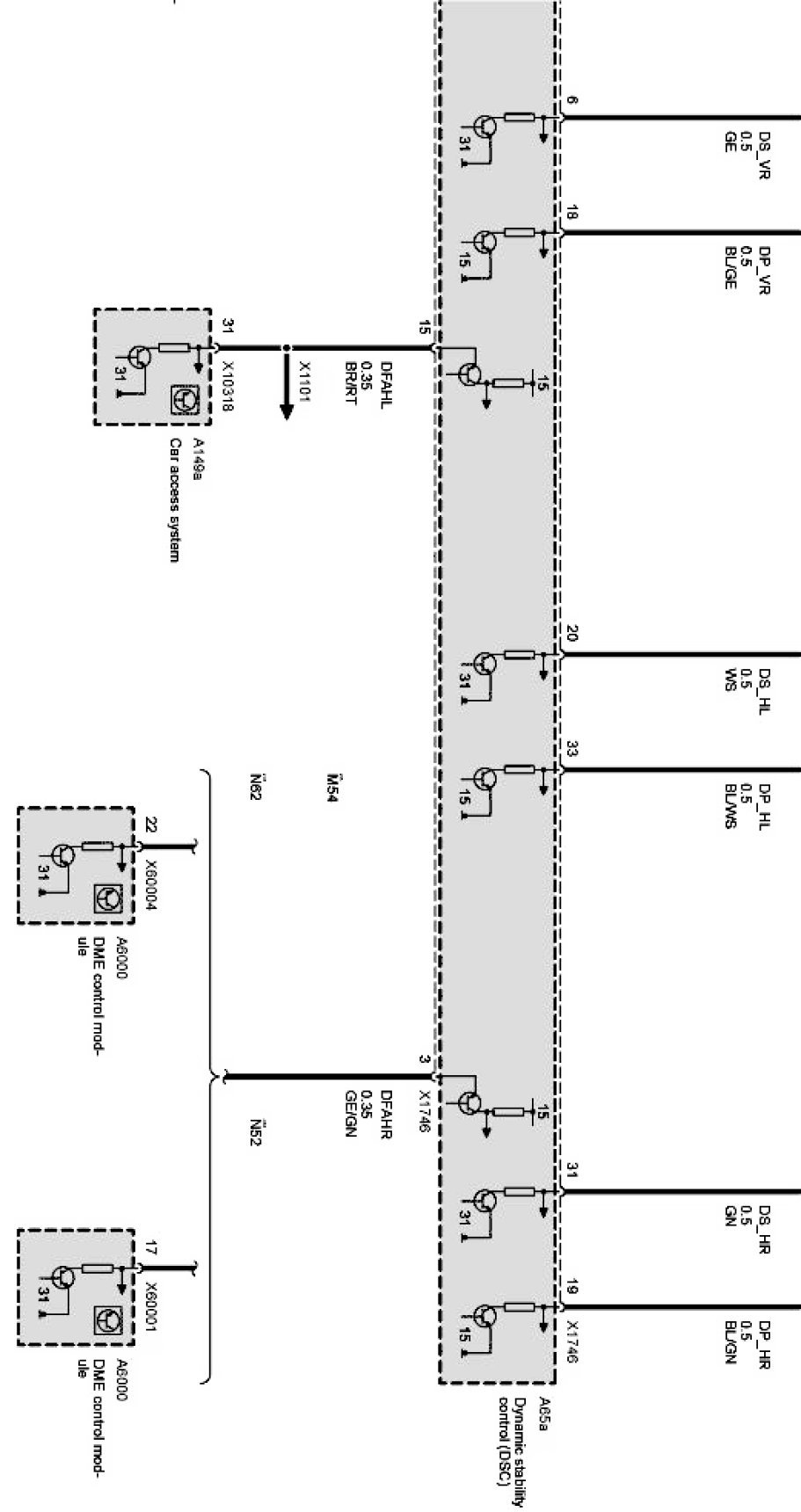

Sensor system Part 5:
