645Ci Convertible (E64) V8-4.4L (N62)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Chassis
>>
Suspension and Damping
>>
Air Suspension (EHC Ride Level (Height) Control)
>>
Electronic Ride Height Control (Up to 09/05)
Electronic Ride Height Control (Up to 09/05)
Pneumatic suspension Part 1:
Pneumatic suspension Part 2:

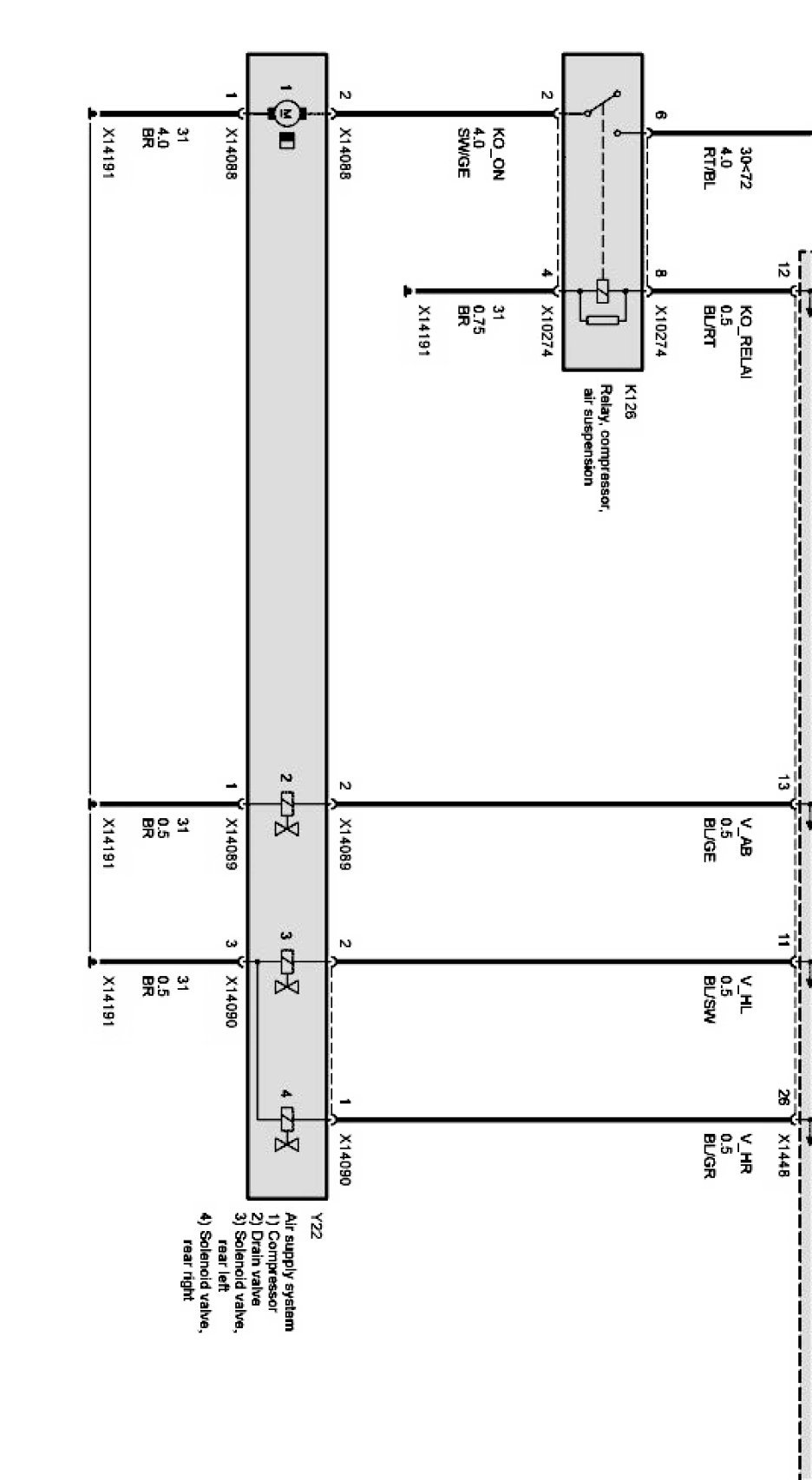

Pneumatic suspension Part 3:
