Seat Occupancy Detection, Front

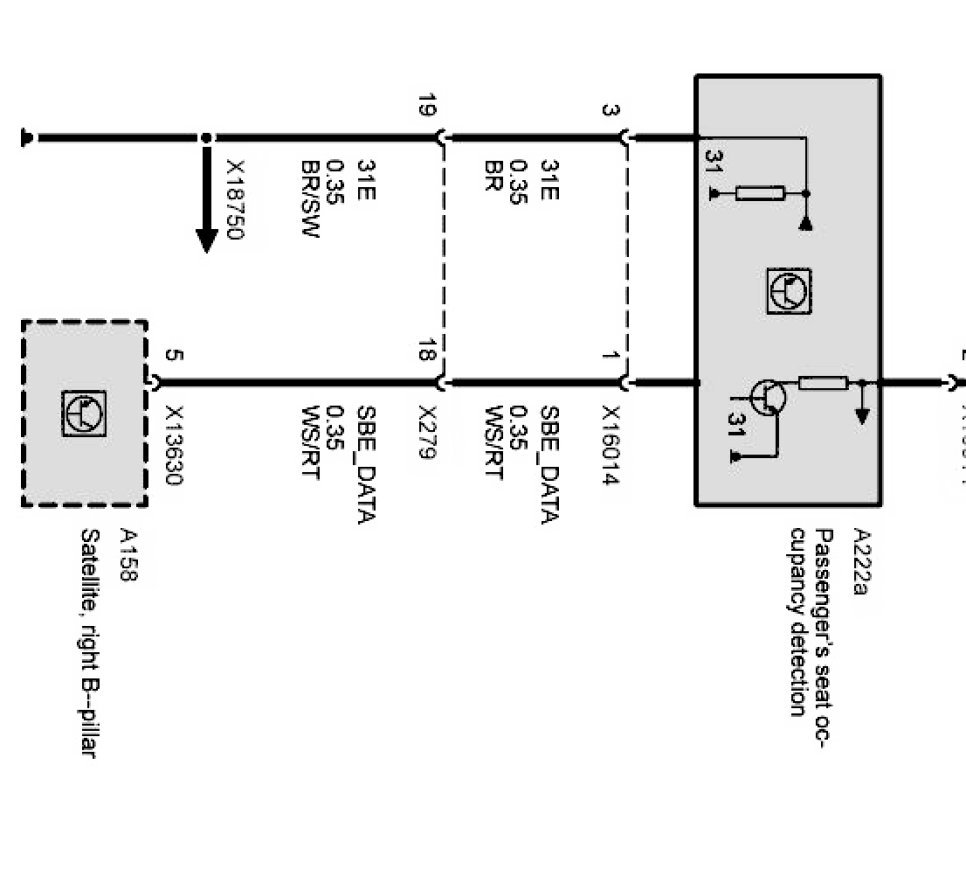

Seat occupancy detector, front Part 1:

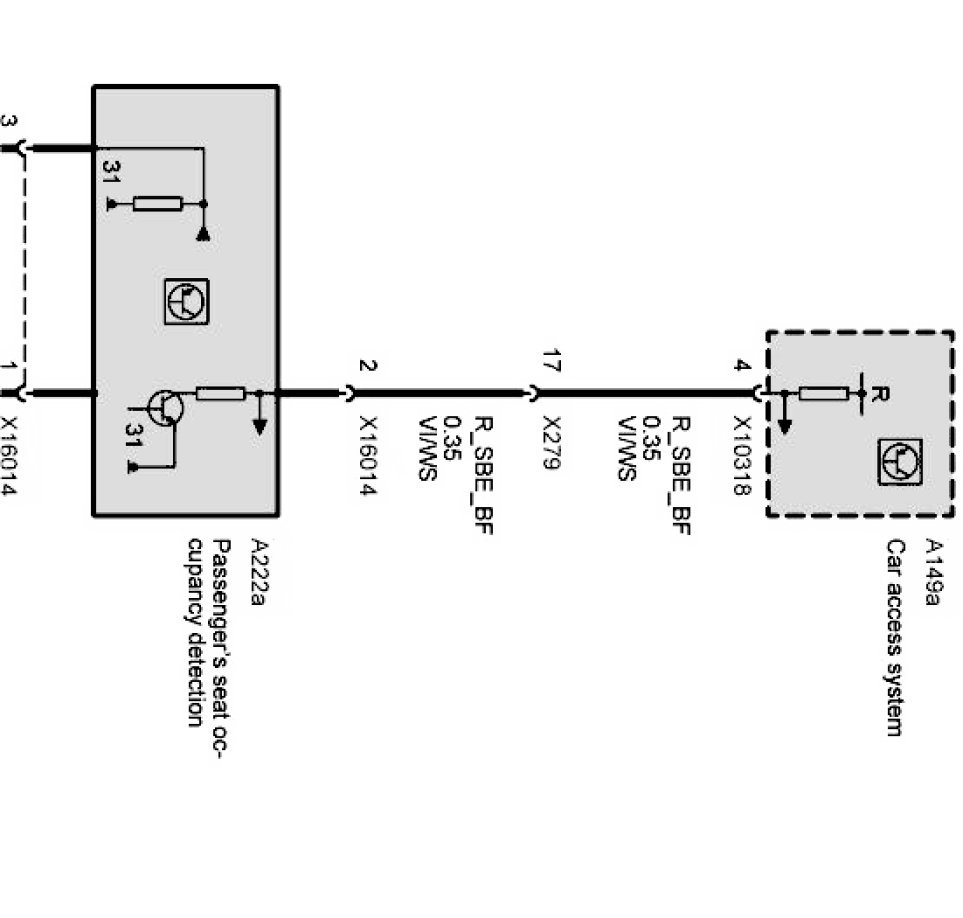

Seat occupancy detector, front Part 2:
