Home >> BMW >> 2005 >> 645Ci Convertible (E64) V8-4.4L (N62) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Mirror >> Driver's Side Mirror (Without KGM Body Gateway Module) (Up to 09/05) >> Switch Block, Mirror Switch

Switch Block, Mirror Switch

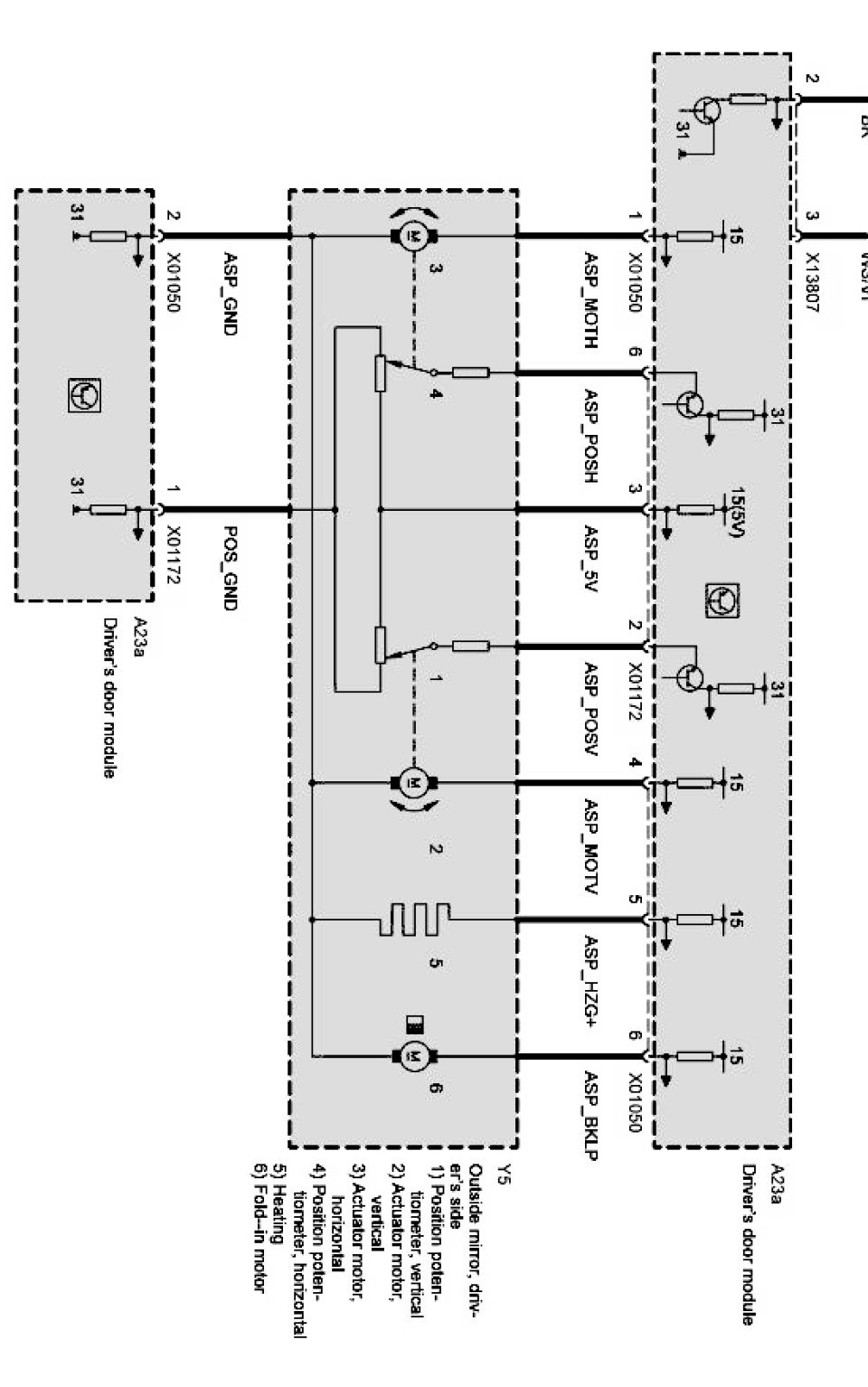

Electric outside mirror, driver's side Part 1:



Electric outside mirror, driver's side Part 2:
