Automatic Trunk Lid/Tailgate (Touring With HKL Rear-Lid Lift up to 03/05)
Automatic Trunk Lid/Tailgate (Touring With HKL Rear-Lid Lift up to 03/05)

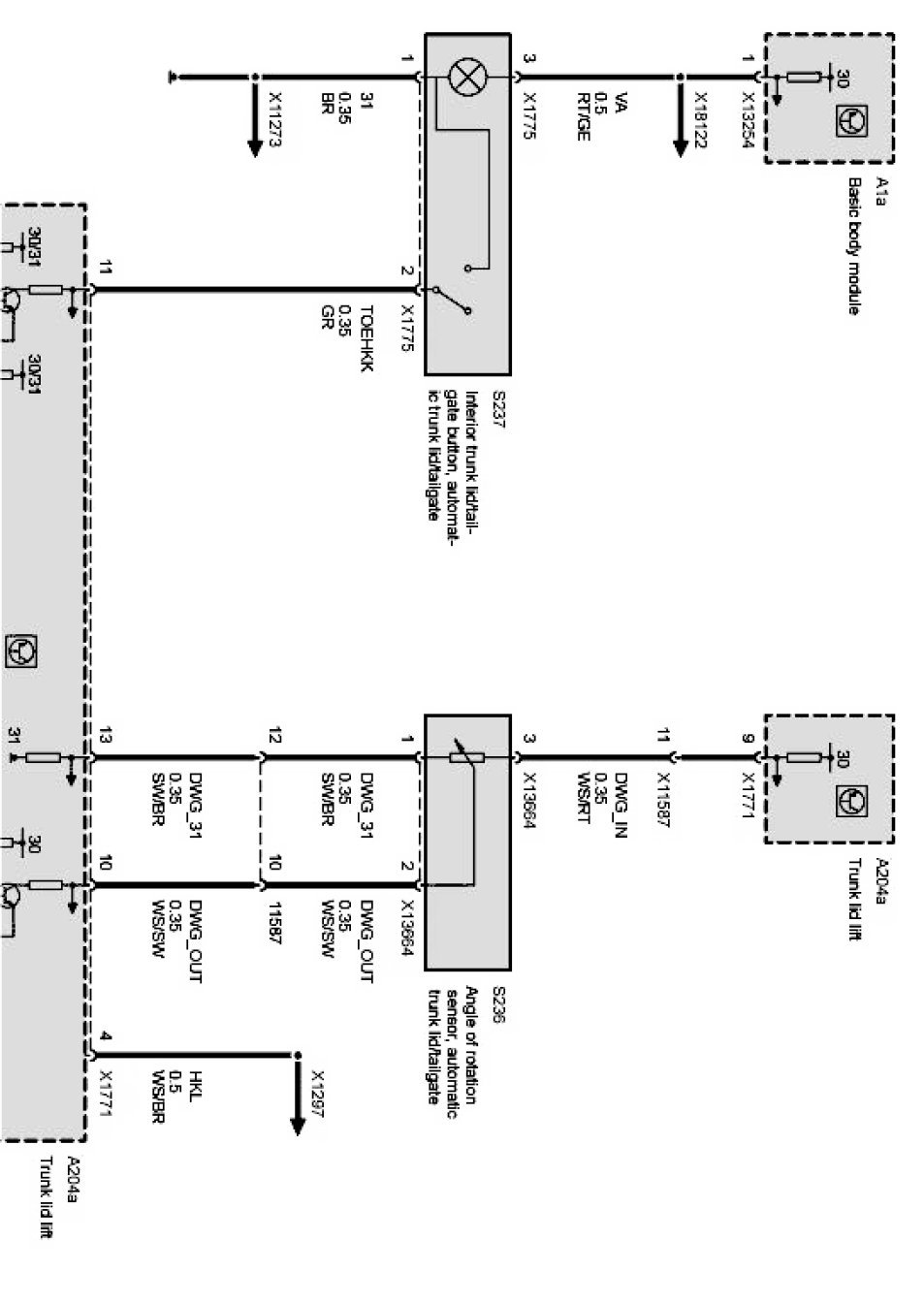

Automatic rear lid Part 1:

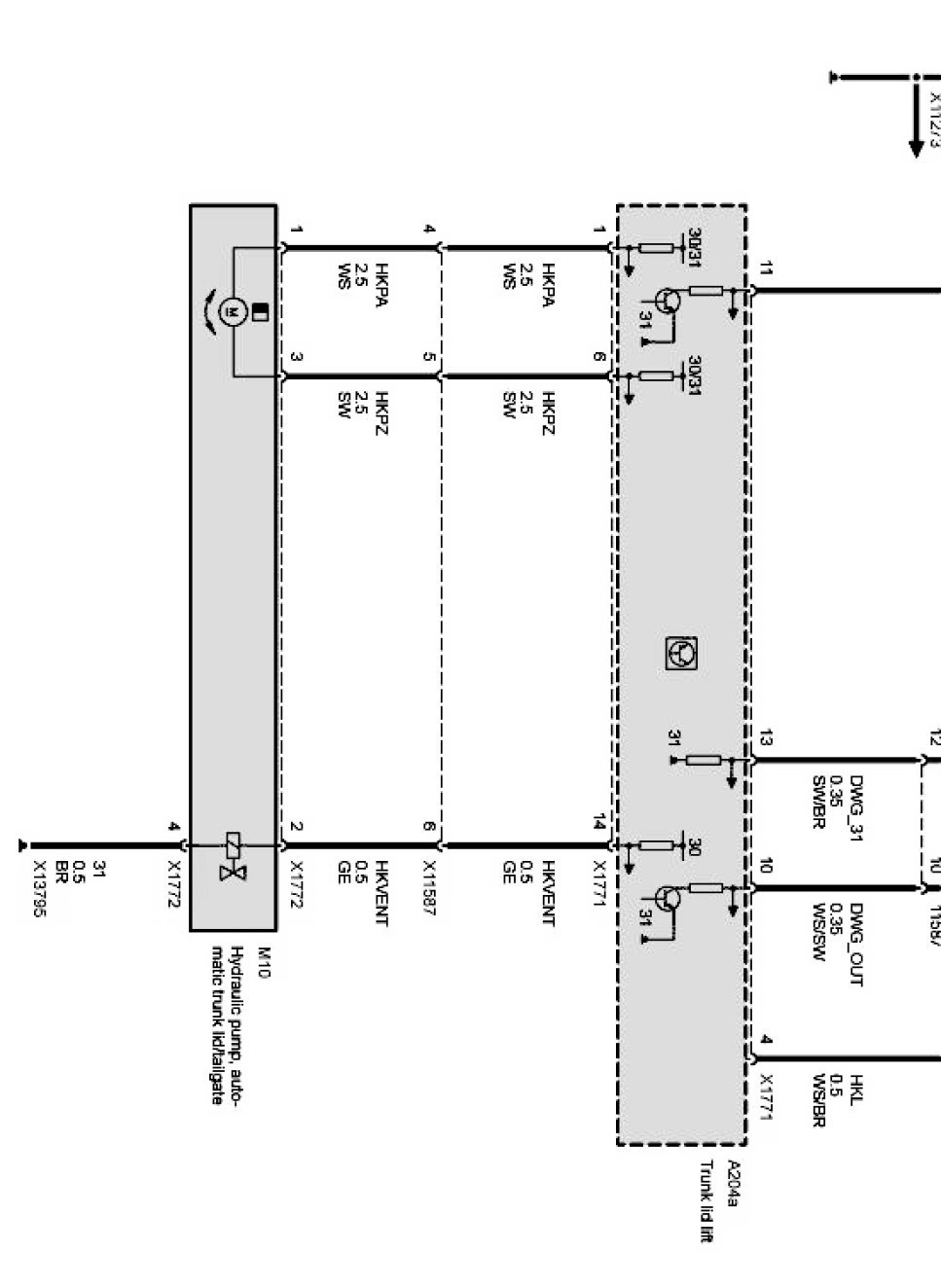

Automatic rear lid Part 2:
