Direction Indicator Lights (Touring As of 03/05 Up to 09/05)

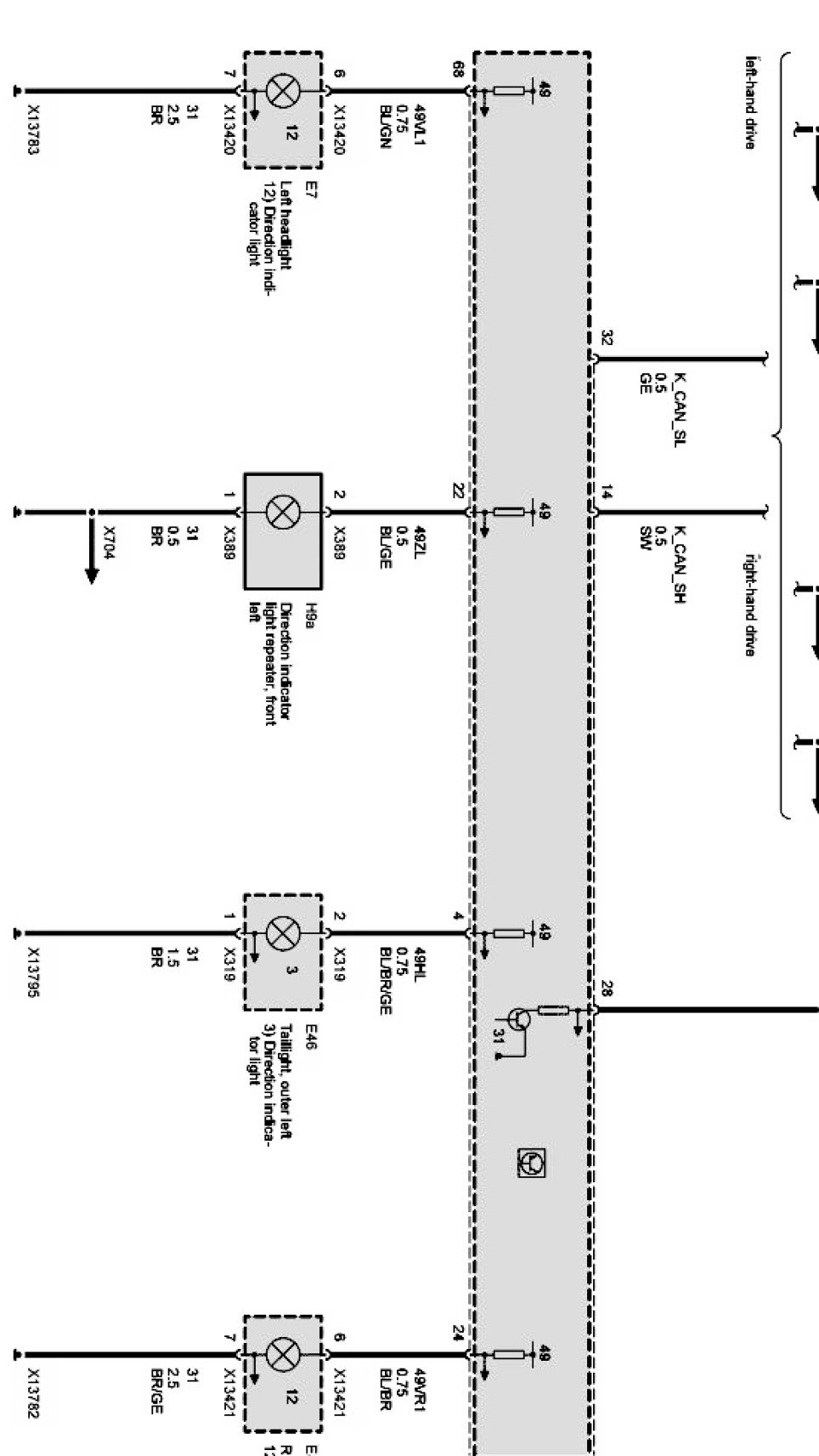

Direction indicator lights Part 1:

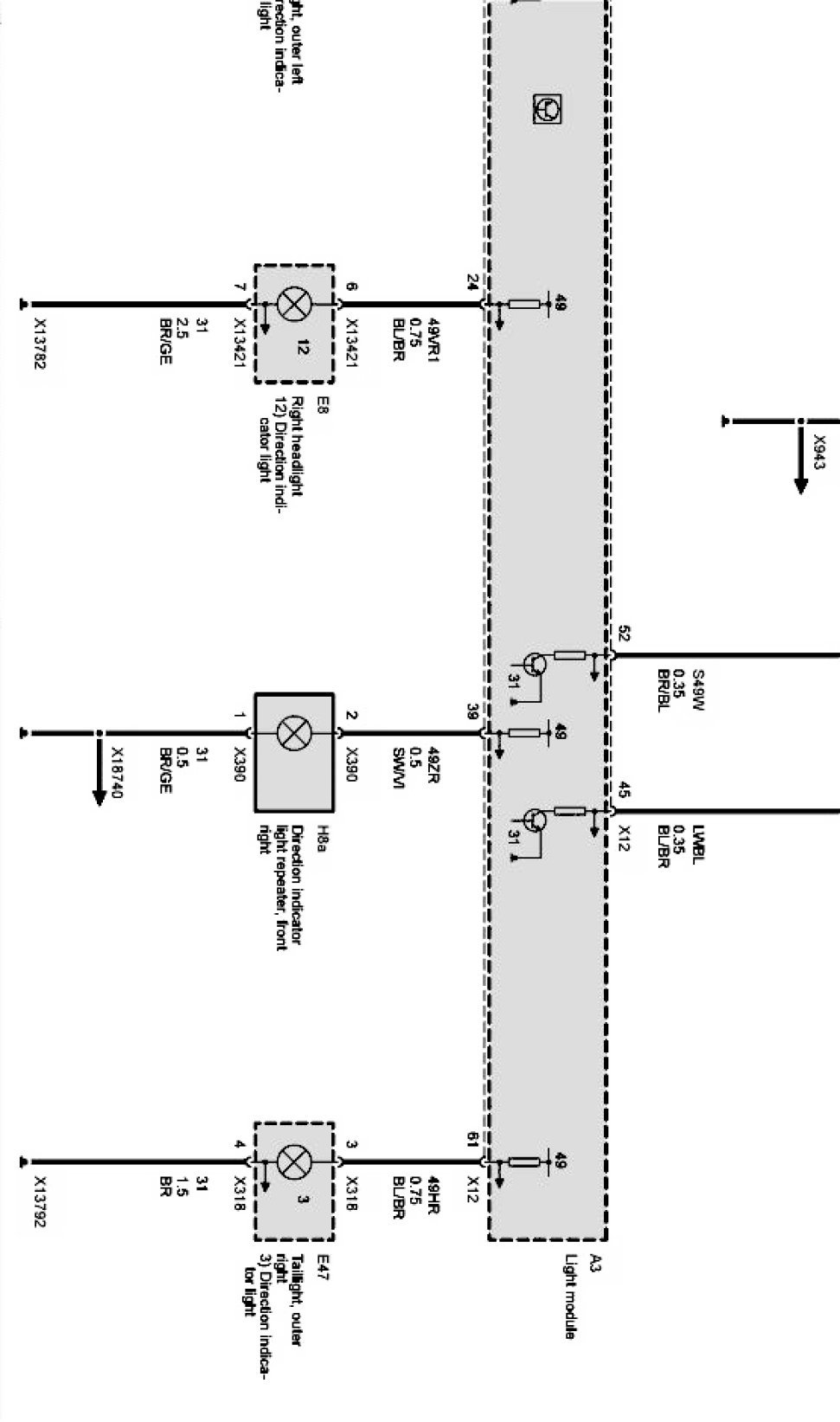

Direction indicator lights Part 2:

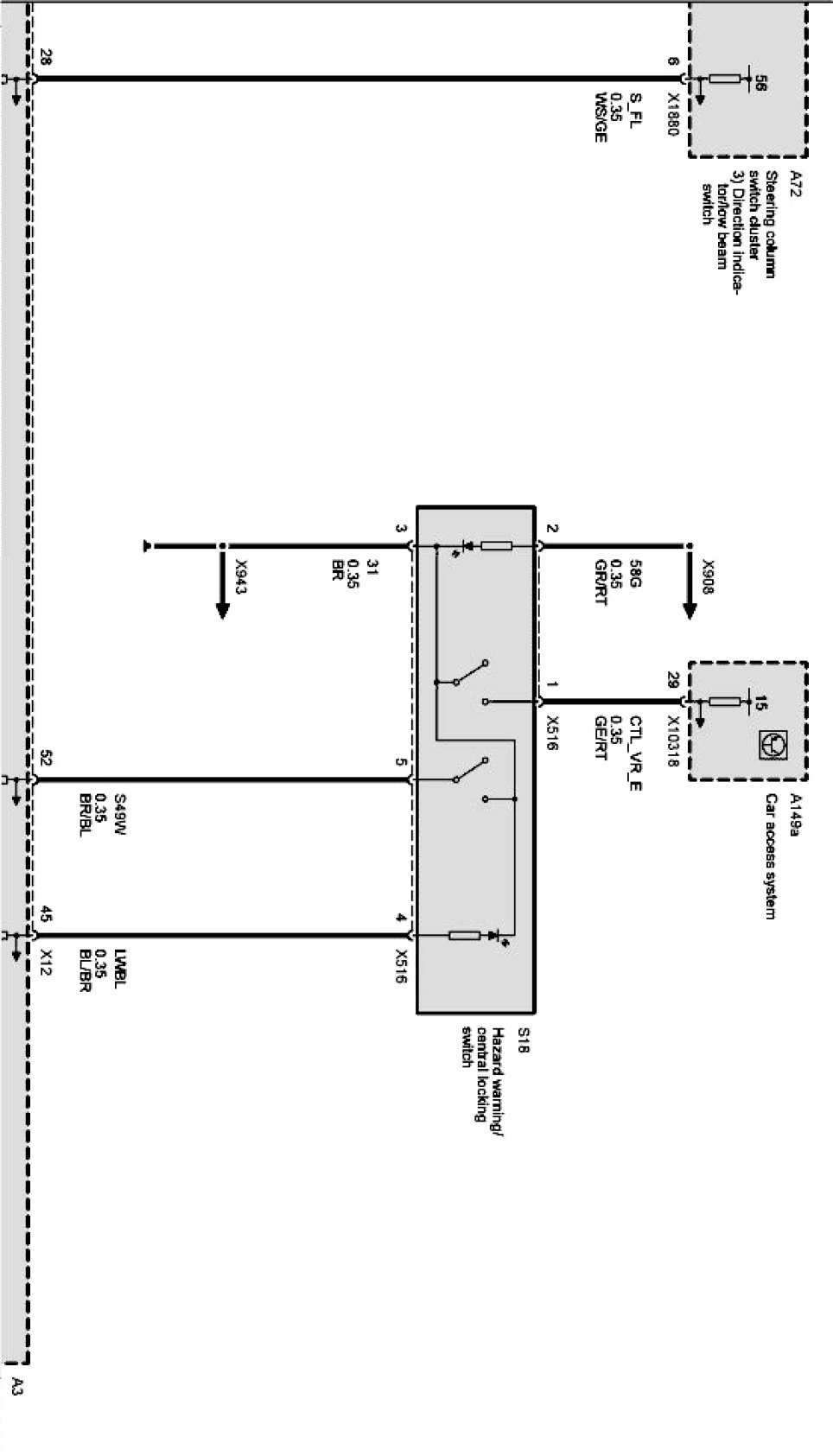

Direction indicator lights Part 3:

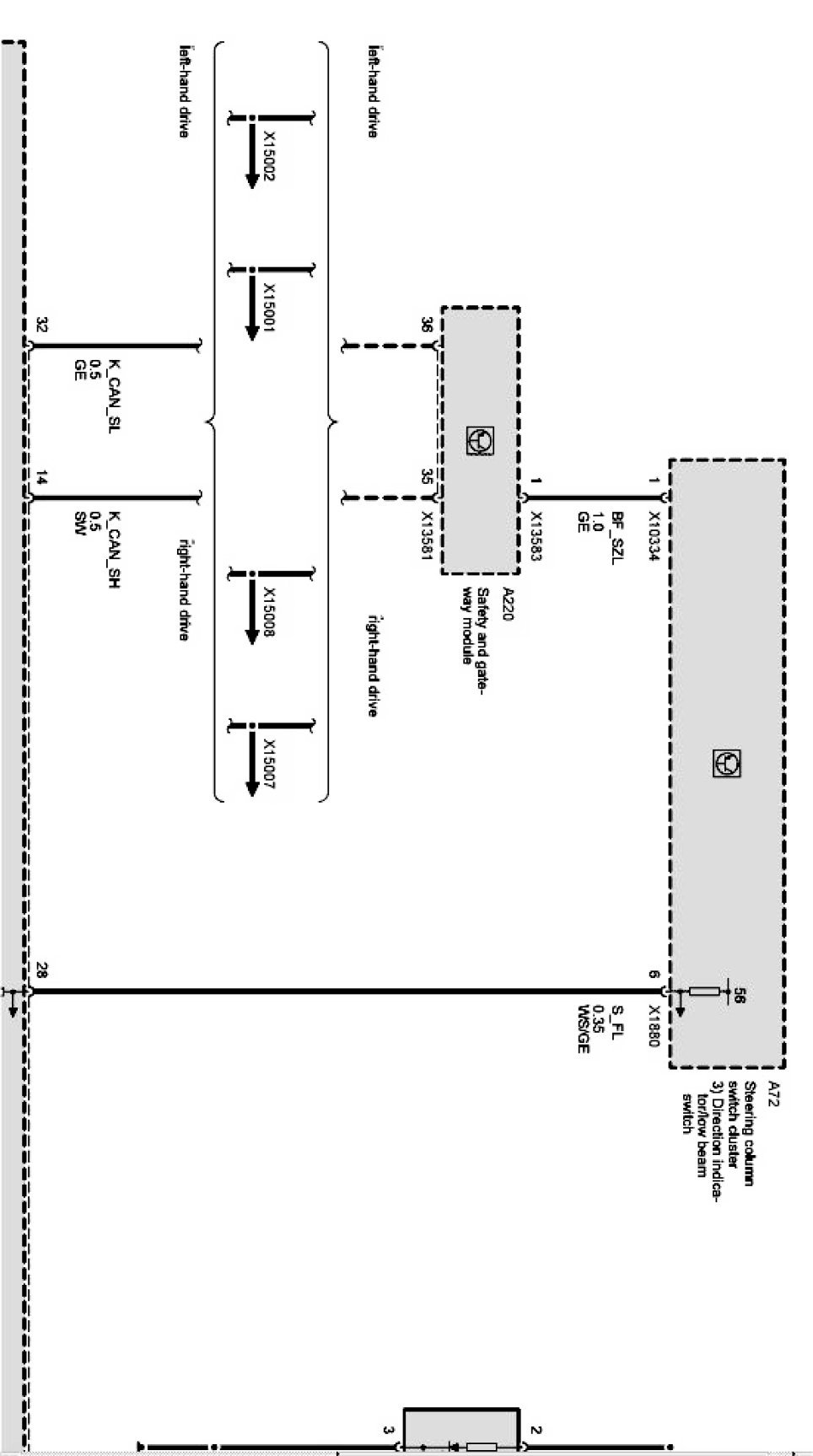

Direction indicator lights Part 4:
